Description
SPECIFICATIONS
Brand Name: FOXWELL
Certification: CE,GMP,RoHS,pse,weee
Hardware Version: 2025
Hign-concerned Chemical: None
Item Type: Code Readers & Scan Tools
Origin: Mainland China
Software Update: Yes
Software Version: 2025

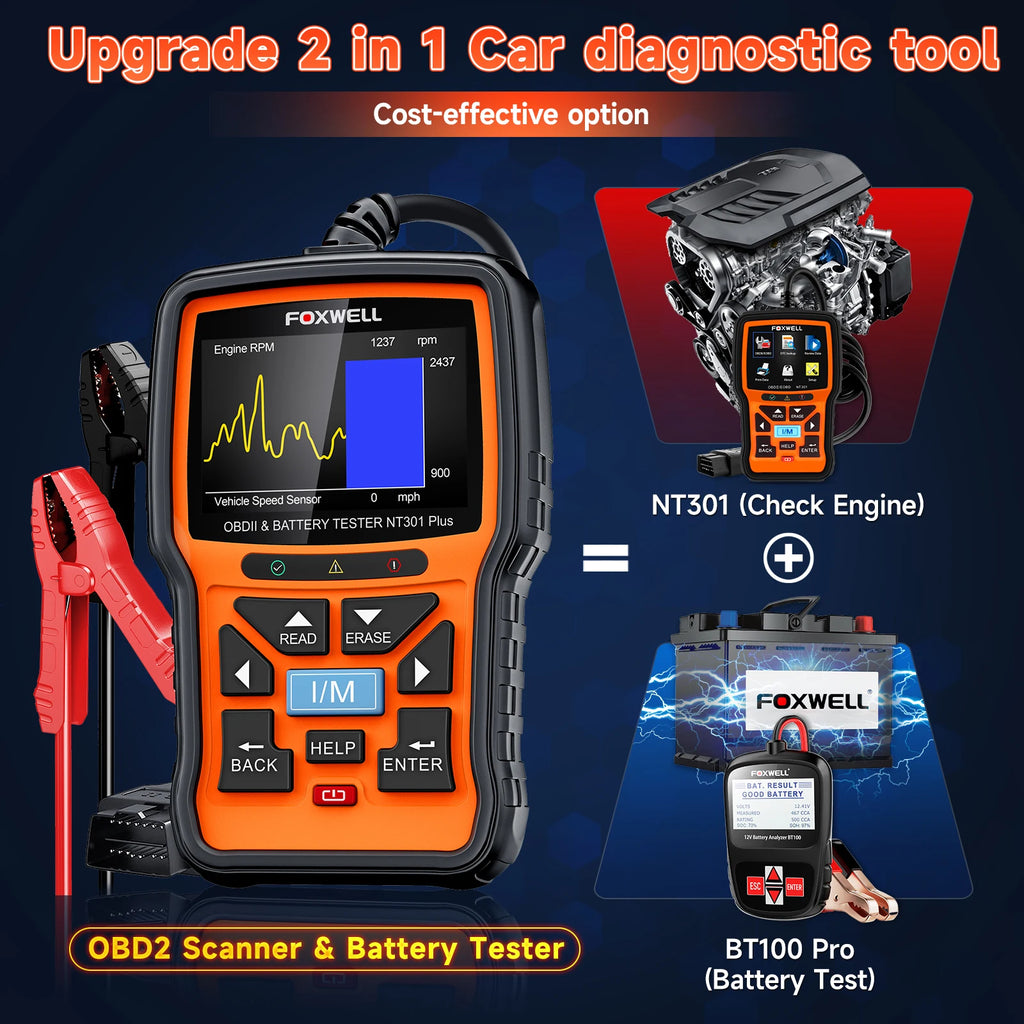

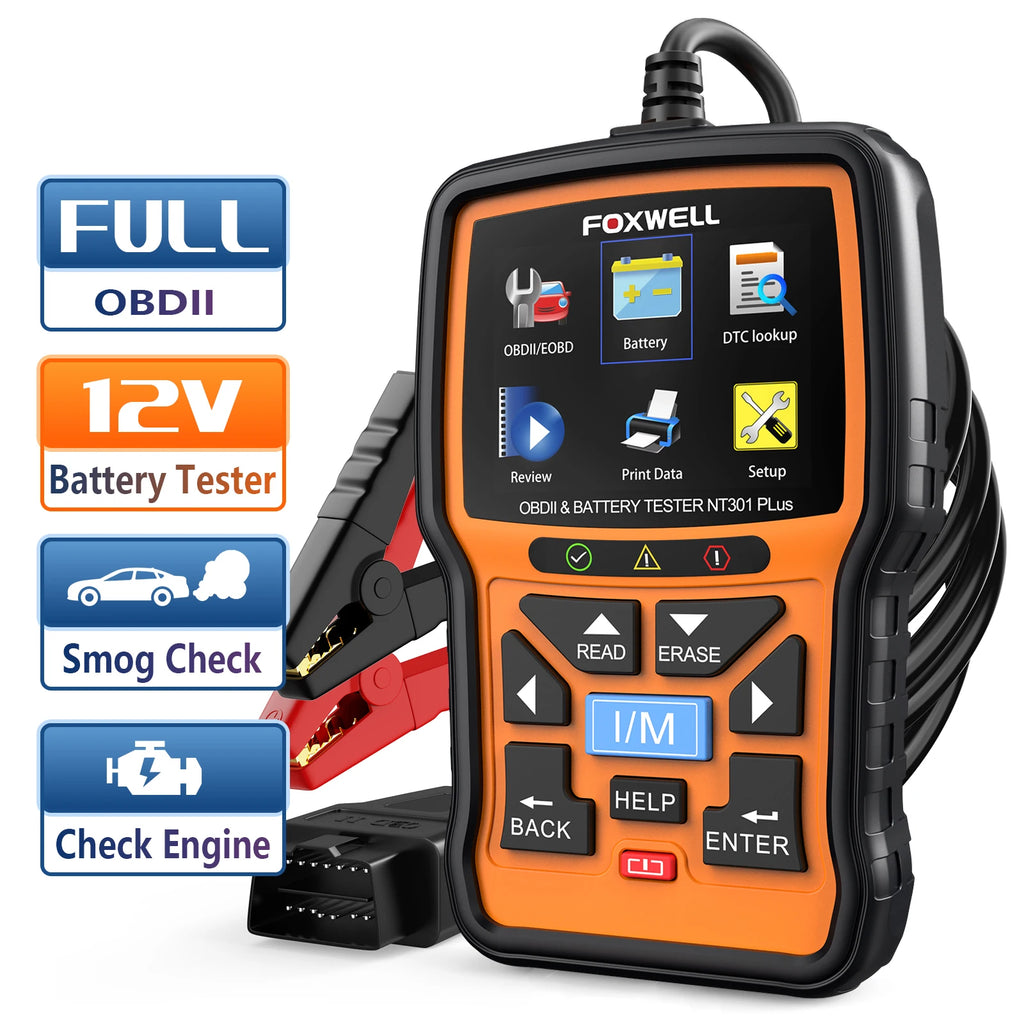

FOXWELL NT301 Plus 2 in 1 OBD2 Scanner Battery Tester OBDII Diagnostic Tool Check Engine Car Code Reader 12V 100-1100CCA Crank
2024 Upgraded Version--NT301 PLUS
As enhanced version of foxwell nt301, nt301plus car code reader covers all nt301 OBD functions, also come with 12V battery health, starting(cranking) and charging system test functions. It provides an easy and affordable solution for locating common vehicle problems quickly, designed for home car owners, beginners, DIY users and technicians. Moreover, it will save lots of car maintenance costs and time for you.
Advanced OBDII Modes & User-friendly Operation

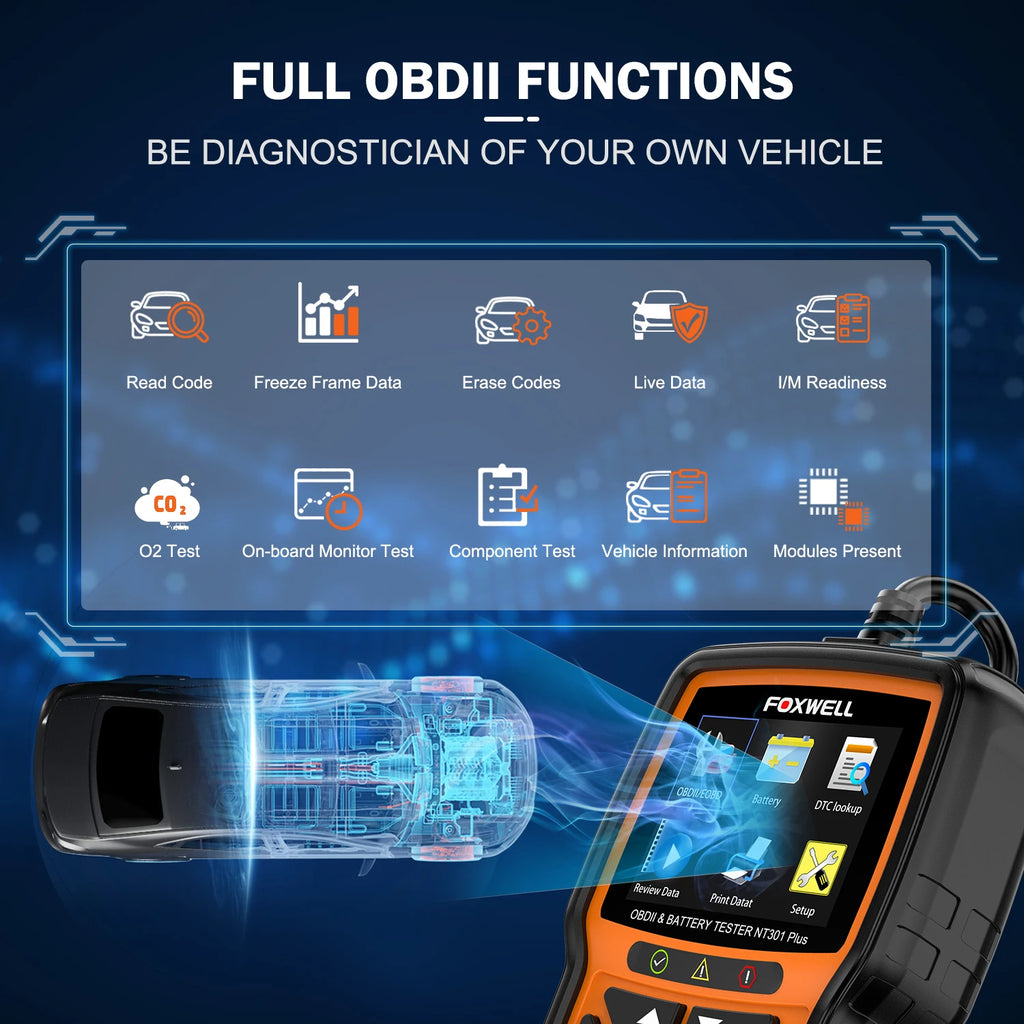

The Car diagnostic scanner support read & clear codes(DTCs), turn off engine light（CEL), read live data and retrieve VIN of your vehicle, E-VAP leak, on-board monitor test, and other enhanced OBDII service modes. It also has the one-click I/M readiness key button to performs a fast state e-missions readiness test, making it be an essential tool for S-mog checks.
FOXWELL NT301 Plus OBD2 Automotive Scanner Tool 12V Battery Tester OBDII EOBD Live Data Code Reader Car Diagnostic Scan Tool
The NT301Plus is a CAN OBDII/EOBD Code Reader and 12V battery tester, it provide easiest and cost-effective solution for OBD faults and battery status check. In addition, its 2.8" TFT color screen and hot keys for I/M readiness test, and reading/clearing DTCs streamline automotive service and help ensure rapid, accurate diagnosis and timely repair.
I/M Readiness
Features the unique pattenred One-click I/M Readiness key for quick State Emissions readiness.I/M Readiness option allows to view a snapshot of the operations for the emission system on OBDII/EOBD vehicles.
When the monitor's status is:
● OK - vehicle was driven enough to complete the monitor.
● INC (Incomplete) - vehicle was not driven enough to complete the monitor.
● N/A (Not Applicable) - vehicle does not support that monitor.

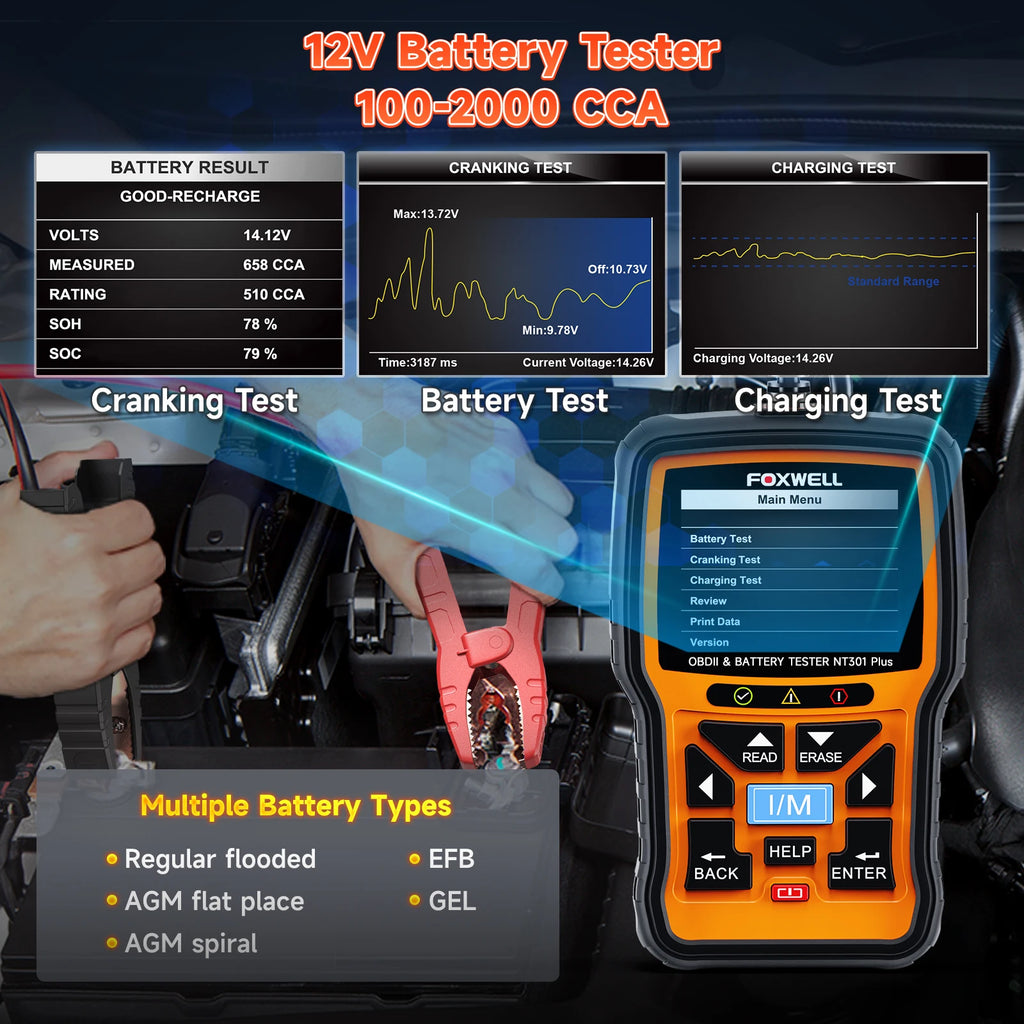

Displays multiple battery conditions, such as SOH (State of Health), SOC (State of Charge), Voltage,Current, Rating and analysis results; The cranking test for analyzing whether the starter motor is working properly. The role of the charging test is to check the status of the charging system to avoid damage to the battery due to overcharging or incomplete charging.
The Cranking Test served to assess the starter motor's functionality, ensuring that all electrical components and systems operated harmoniously and without issues.
The Charging Test played a crucial role in examining the charging system's condition, helping you prevent any damage resulting from overcharging or incomplete charging of the battery.
Replace Your Bad Battery In Time:Standard Description Testing Range
CCA Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C). 100-1100
CA Cranking Amps standard. The effective starting current value at 0°C (32°F). 100-1100
MCA Marine Cranking Amps standard. The effective starting current value at 0°C (32°F). 100-1100
JIS Japanese Industry Standard, shown on a battery as a combination of numbers and letters. 26A17--245H52
DIN Deutsche Industrie-Norm. 100-1100
IEC International Electro technical Commission. 100-1100
EN Europa-Norm 100-1100
SAE Society of Automotive Engineers 100-1100
Test Results --- Interpretation:
GOOD BATTERY --- The battery is in good condition.
GOOD-RECHARGE --- The battery is in good condition but low current. Fully charge the battery and return it to service.
CHARGE & RETEST --- Fully charge the battery and retest. Failure to fully charge the battery before testing may result in inaccurate results. If you still get CHARGE & RETEST message after you fully charge the battery, replace it.
REPLACE BATTERY --- The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test before replacing it.
BAD CELL-REPLACE --- The battery may be damaged such as broken cell or short circuit. Replace the battery and retest.
FOXWELL NT301 Plus Diagnostic Tool Support Battry Type:
works on regular flooded, AGM flat plate, AGM spiral and GEL batteries with 100 to 2000 CCA.
FOXWELL NT301 Plus Diagnostic Tool Support Languages :
(1) English, français, Español, Deutsche and italiano
(2) English, Português, Magyar, Nederlands, svenska
(3) English, русский
4 IN1 Car OBD2 Scanner Diagnostic Tool
FOXWELL NT301 Plus Diagnostic Tool Support Car List :
1. America Car List: (include Brazil)
Need standard obd2 , and release from 2001 years to now
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2. Europe Car List:
Need standard obd2 , and release from 2004 years to now
Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard obd2 , and release from 2006 years to now
Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota
4. Chinese Car List
Chinese car Need standard obd2 , and release from 2011 years to now
Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry
NOTE:
for Ssangyong Actyon, Kyron, Rexton, from 2011-2017 years.
for Ssangyong Korando, from 2013-2017 years
for Renault cars from 2016-2018 years.
Does not support for Renault / Dacia Logan , Clio.
Does not support for LADA, UAZ, VAZ
No Car OBD2 Scanner can work for all cars, If the device does not fit for your car, please try to test on another newly car.
Print & Update

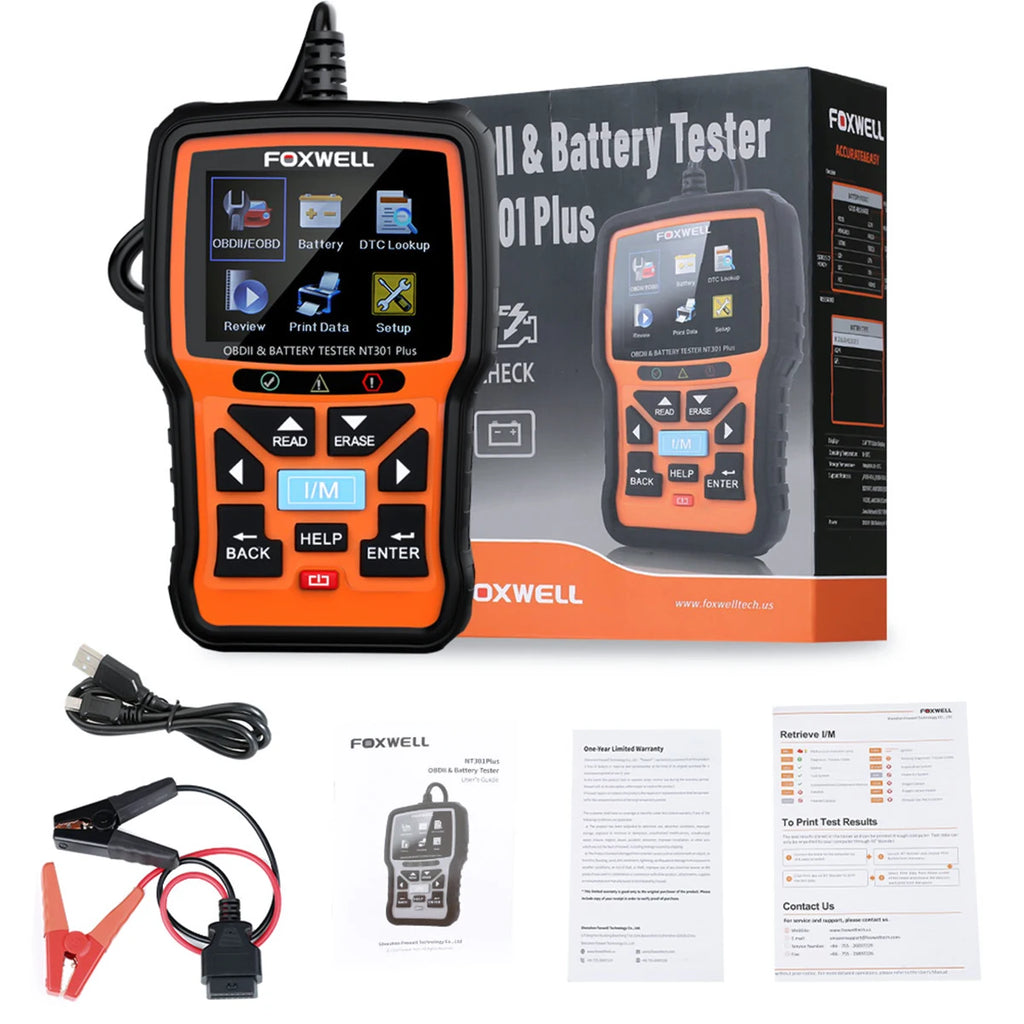

Package Including:
1 x FOXWELL NT301 Diagnostic-Tool
1 x English User Manual
1 x USB cable
1 x Battery Cable
