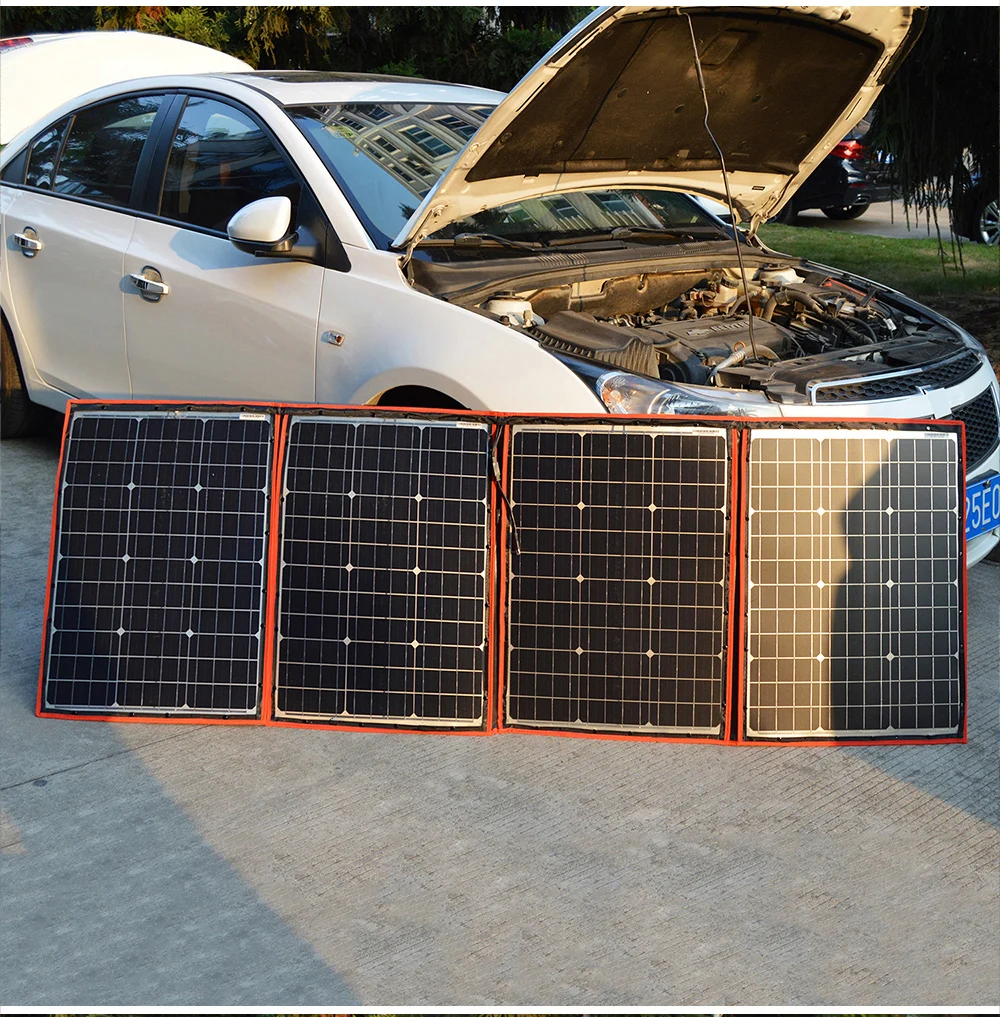

DOKIO 150W Portable Solar Panel 12V Solar Battery For Home/Car/Boat Foldable Solar Panel 150w Monocrystalline

Save 20%
East Supplier PlatformSKU: 2255800658573534-United Arab Emirates-150M solar panel

Color: 150M solar panel
Price:
$446 $557.50

Tax included

Stock:
Sold out

Description

SPECIFICATIONS

is_customized: Yes

Type: Solar Panel

Size: Foldable Dimension:21.26x19.69x0.94(in)/54x50x2.4(cm)

Origin: Mainland China

Number of Panels: 1

Number of Cells: 36

Model Number: FFSP-160M

Max. Power: 150W±3%

Material: Monocrystalline Silicon

Foldable Solar Panel: Yes

Flexible Solar Panel: Yes

Certification: CE

Brand Name: DOKIO

Model:FFSP-160M

Material:Monocrystalline silicon
Maximum Power(Pmax): 150W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):9.14A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V

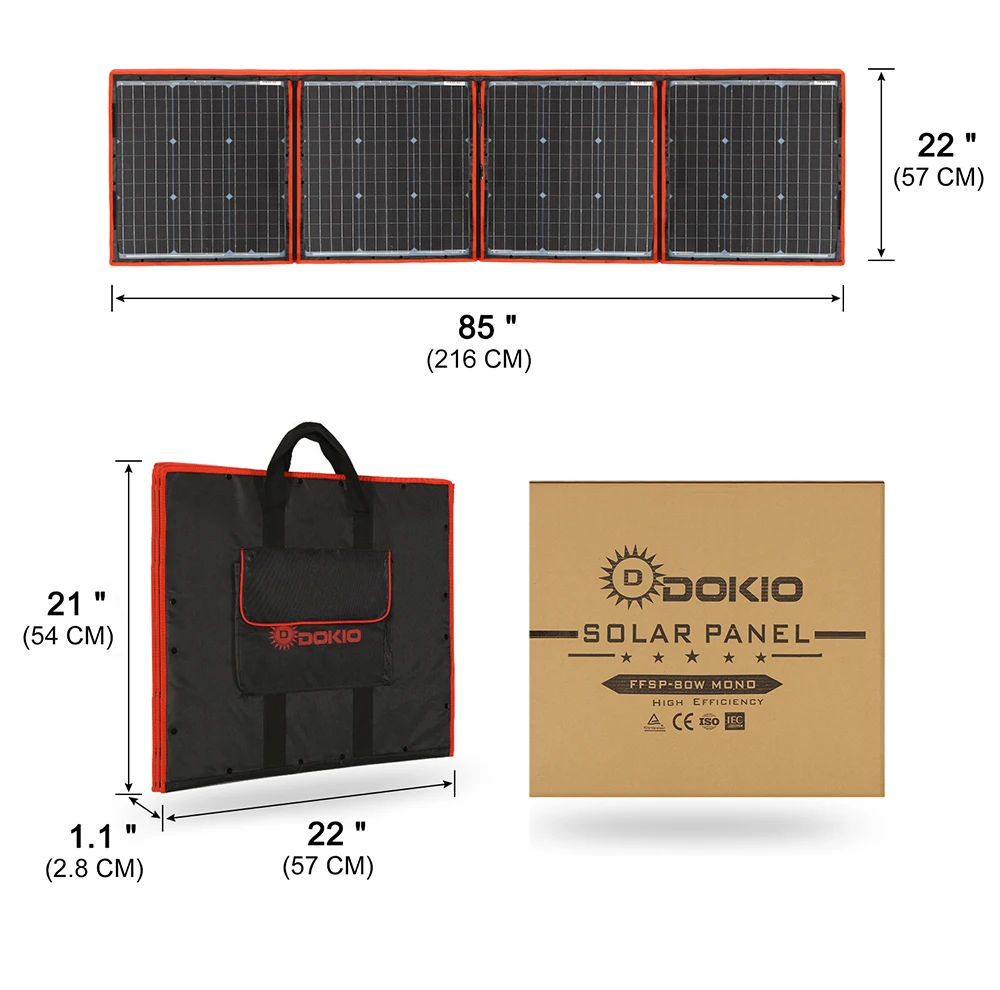

Foldable Dimension:21.26x19.69x0.94(in)/54x50x2.4(cm)
Expansion Dimension:85.04x22.44x0.24(in)/216x57x0.6(cm)
Net Weight:4.1kg
Package Weight:4.8kg
Package Size:62x58x7cm

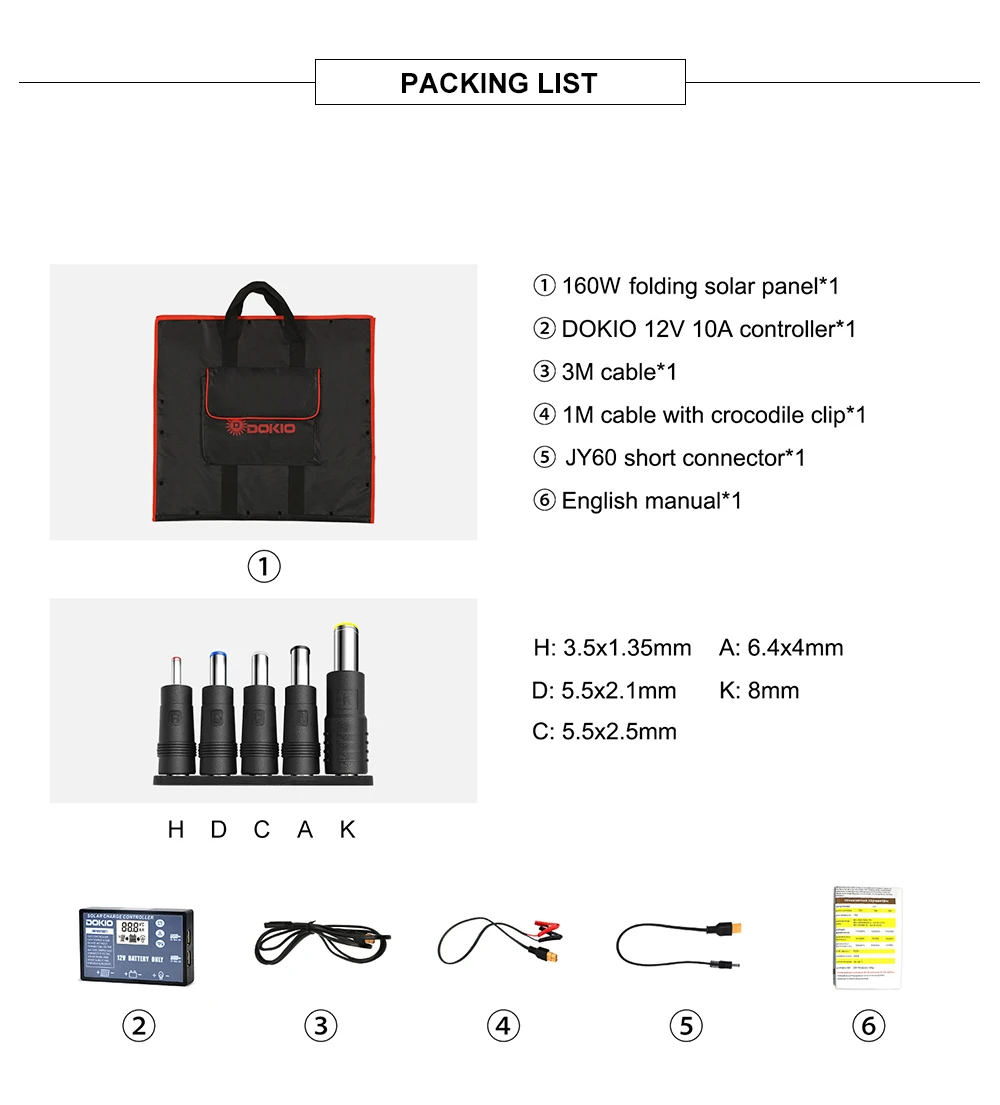

Package List:
1*150W Flexible Foldble Solar Panel
1*3M wire,1*10A 12V controller,
1*English User Manual
Cable thickness: 2x1.0 mm²

(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)

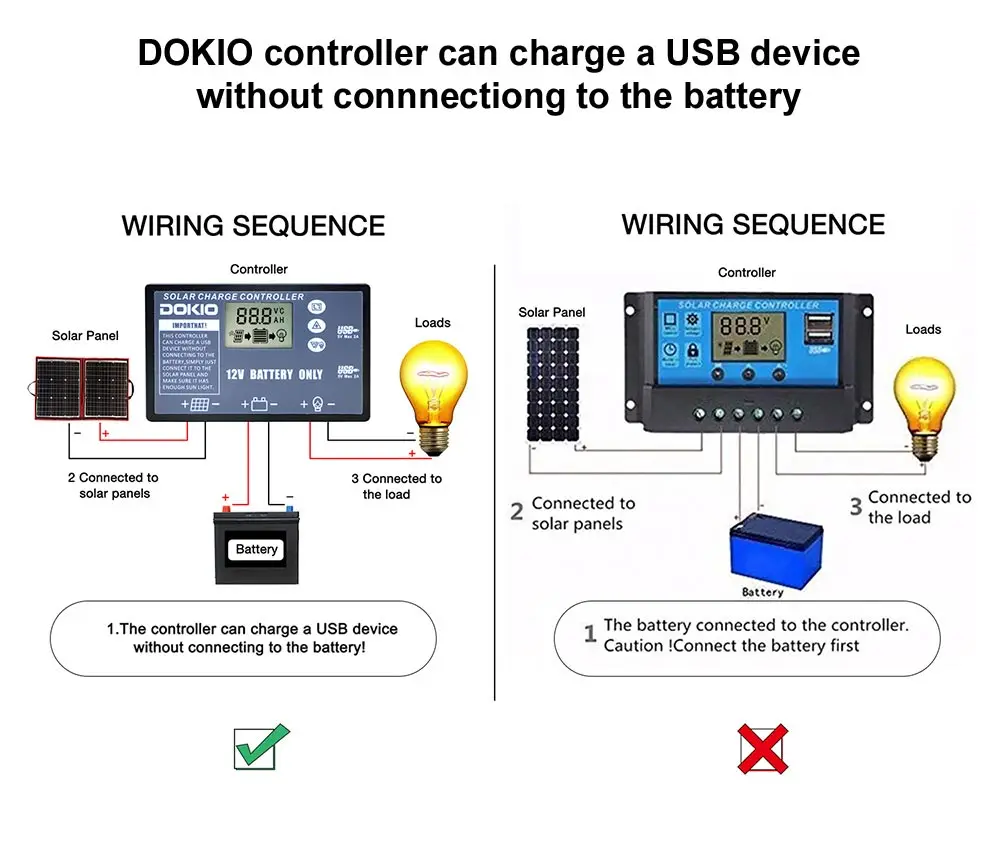

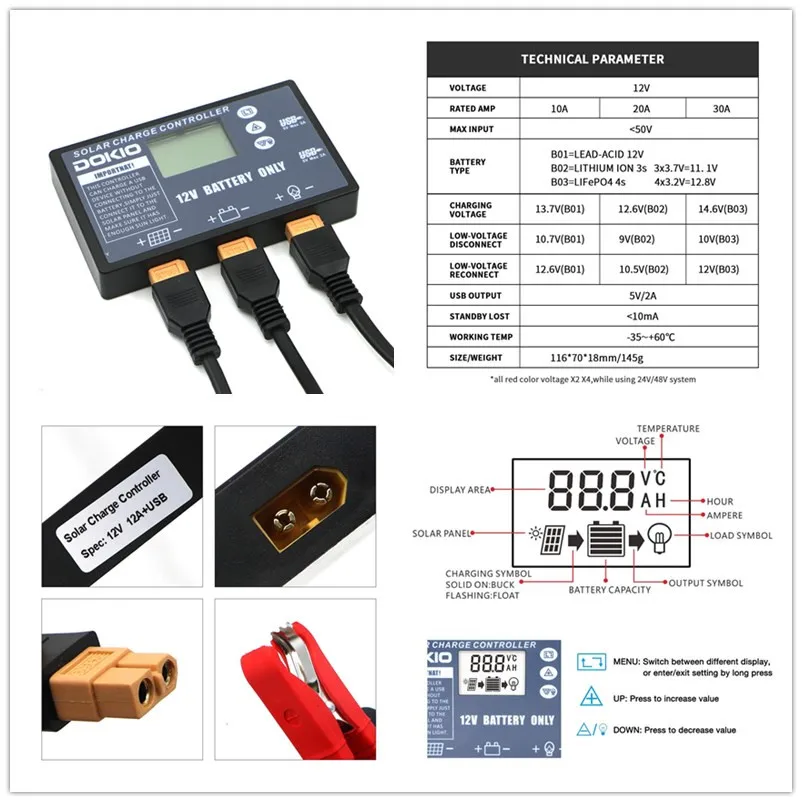

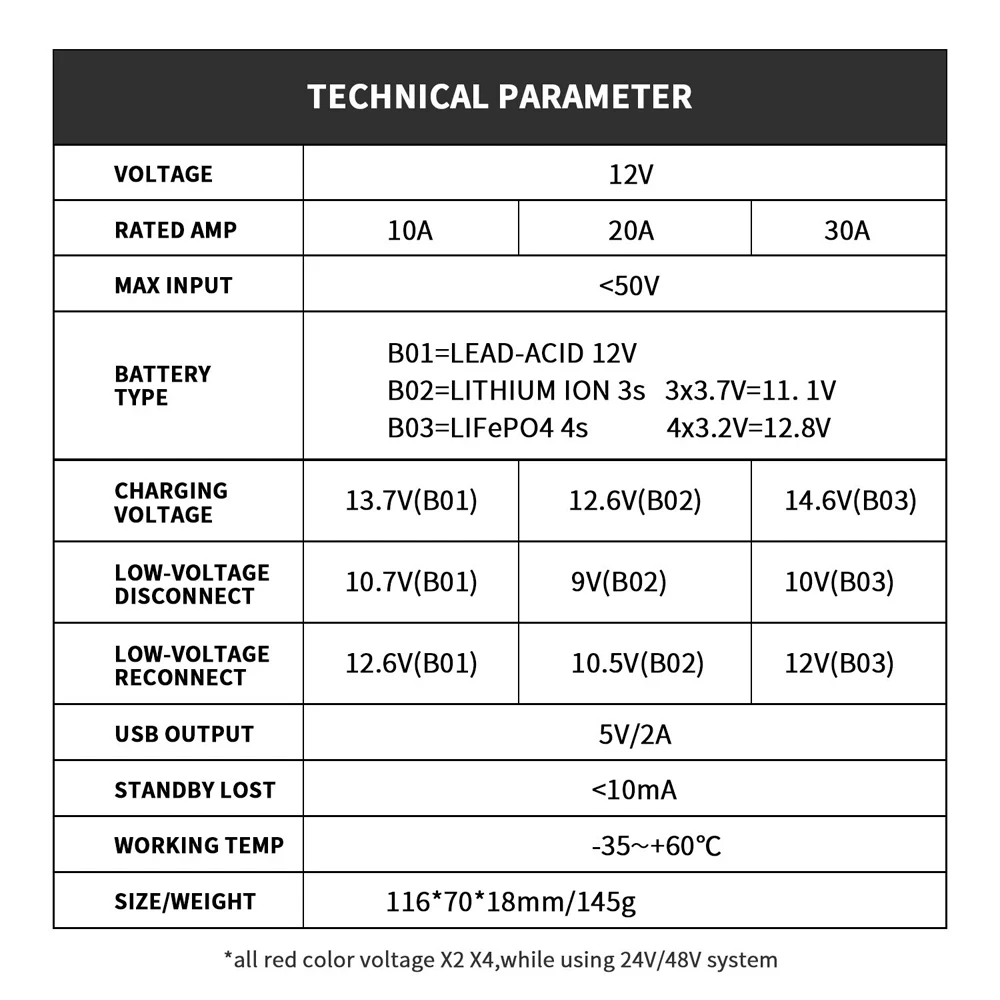

Controller support 12V lead-acid,lithium ions and LiFePO4 battries.
The controller cannot be used to test solar panels.Under sufficient light conditions, a multimeter should be used for no-load test.

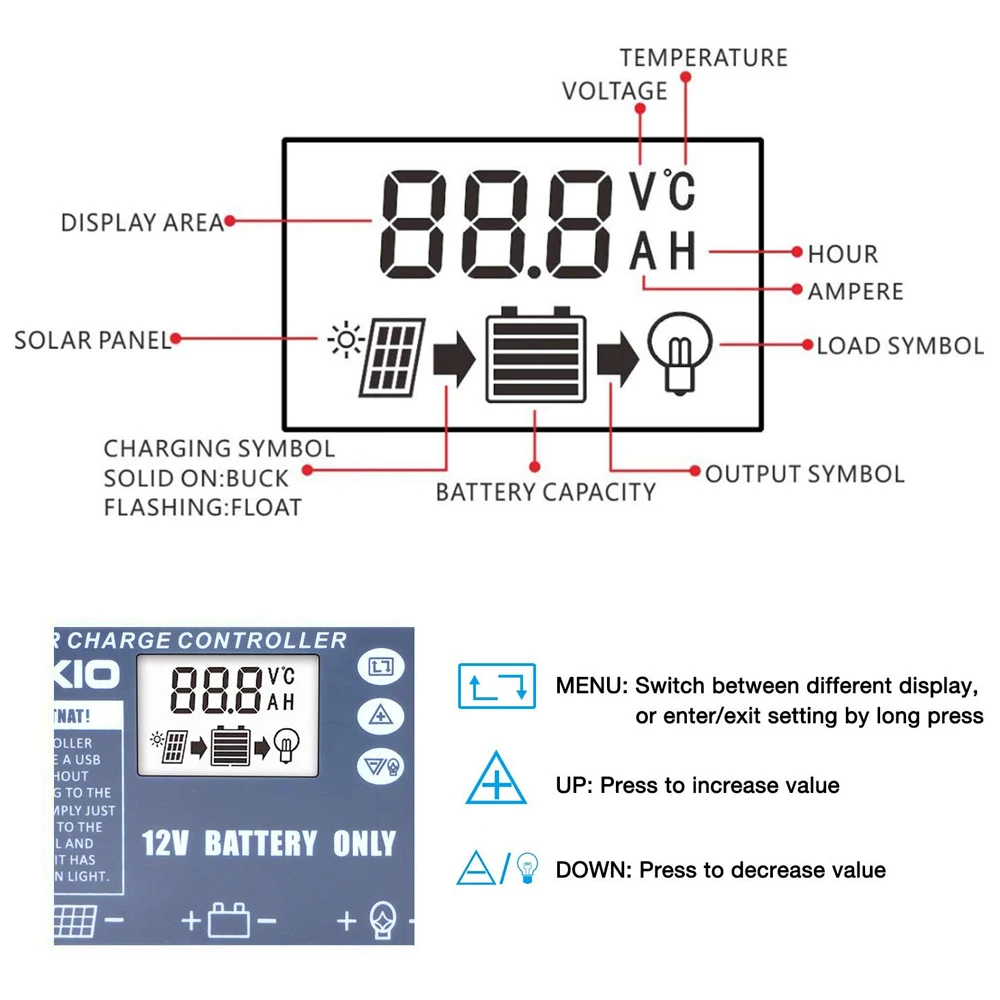

Controller
