2PCS CNHL 3S 11.1V Lipo Battery 2200mAh 30C 40C 70C With XT60 T EC3 Plug For RC Airplane Helicopter Quadcopter FPV Drone Car Racing Hobby

Basic Parameter

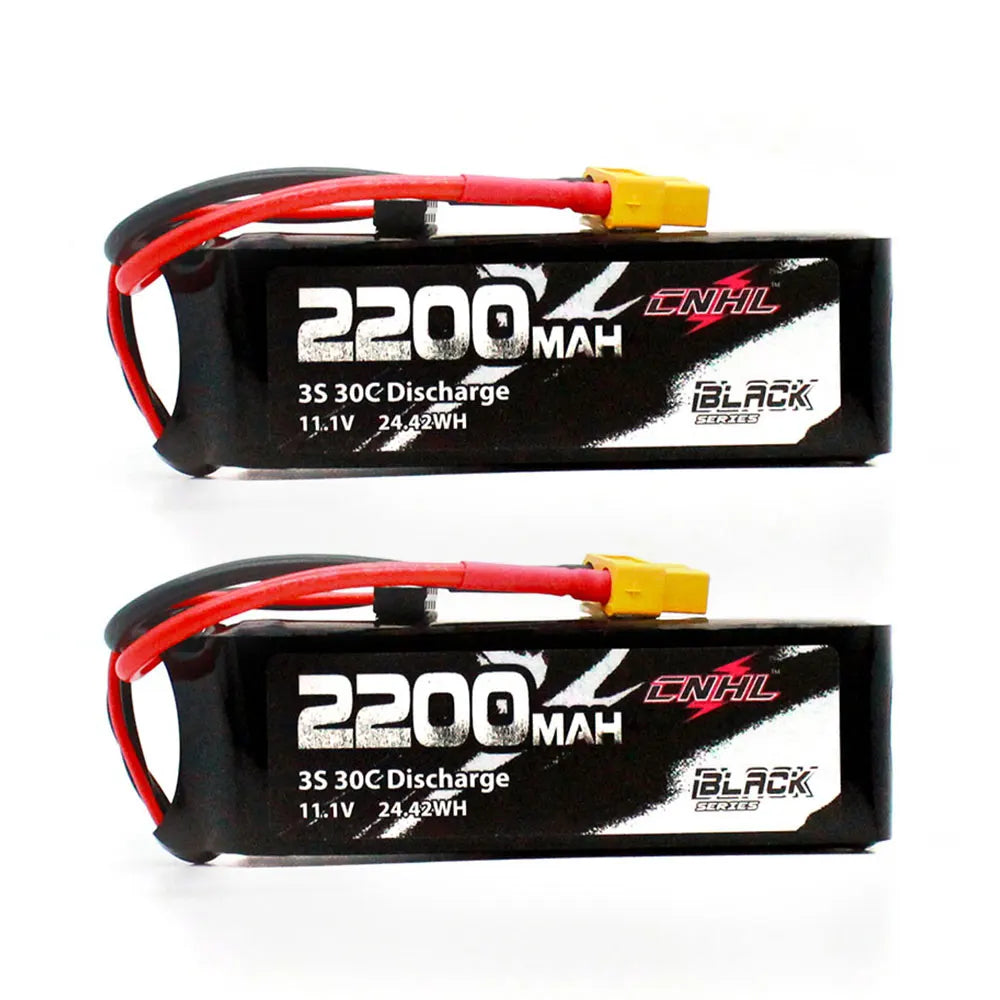

Model 1：2200mah 3S 11.1V 30C XT60-Plug
Stock Number：220303BK
Capacity ：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max

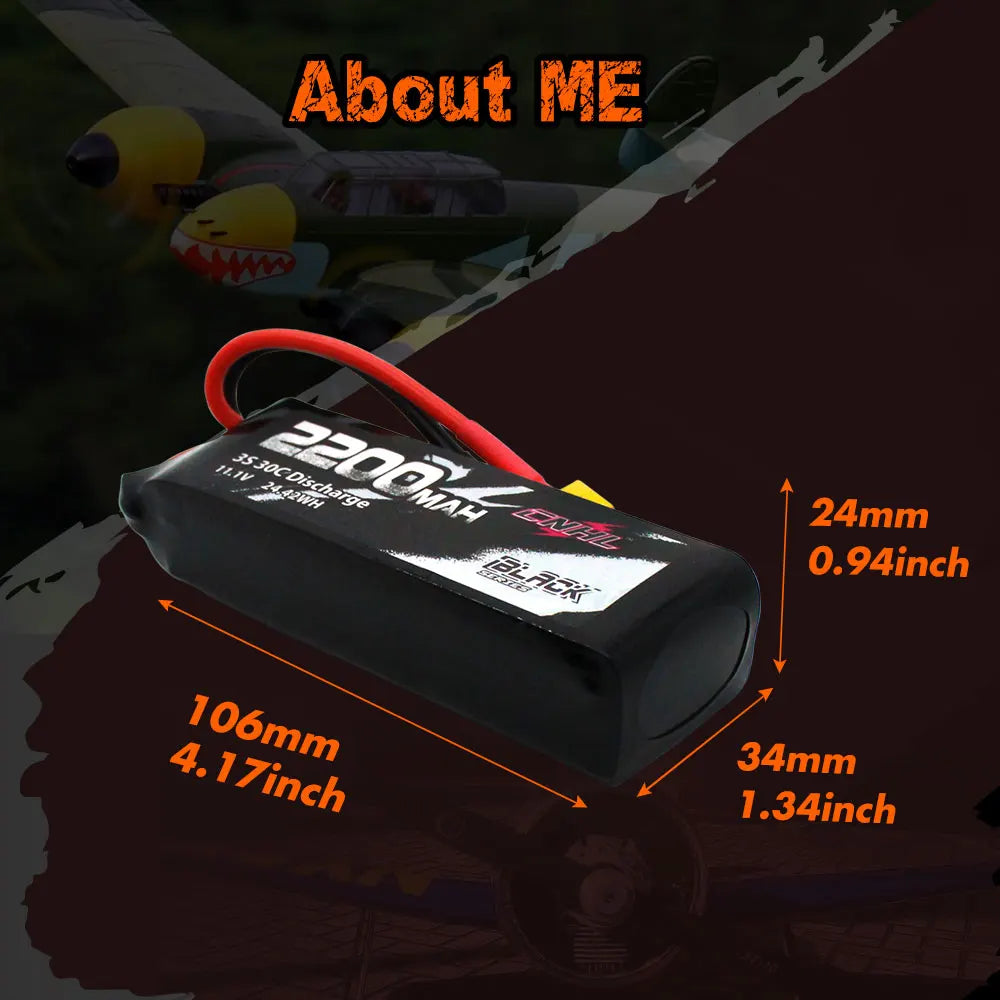

Size：24X34X106mm
Weight ：174g (Including wire and connector)

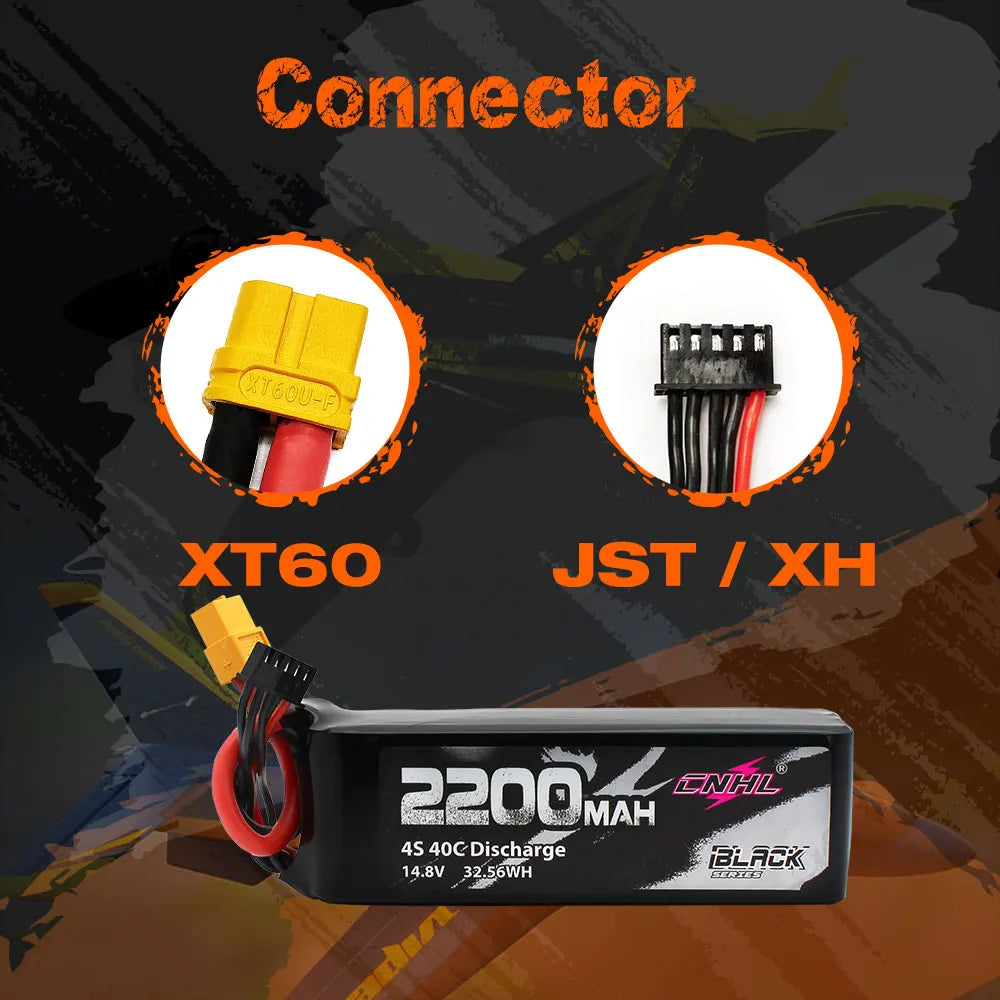

Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A

Model 2：2200mah 3S 11.1V 40C XT60-Plug
Stock Number：220403BK
Capacity ：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：40C Continual / 80C Burst
Charge Rate：5C Max

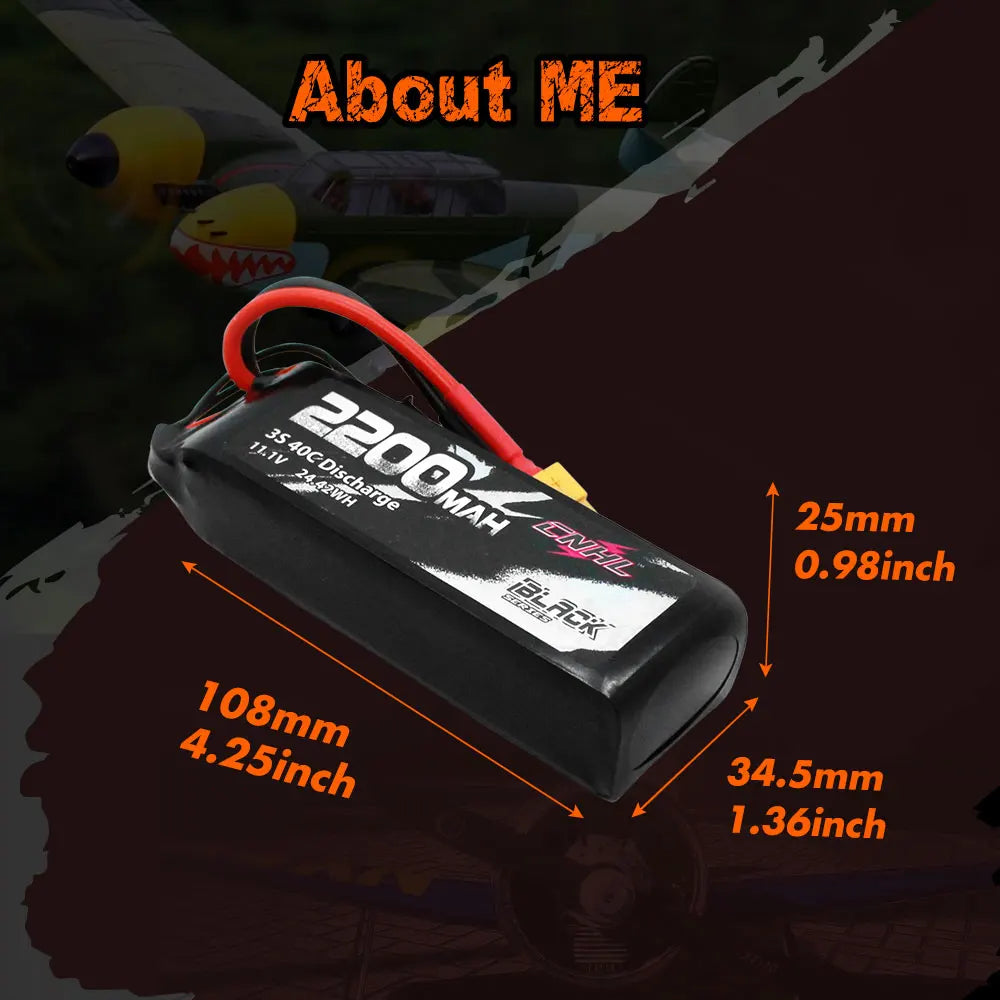

Size：25X34.5X108mm
Weight ：183g (Including wire and connector)
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A

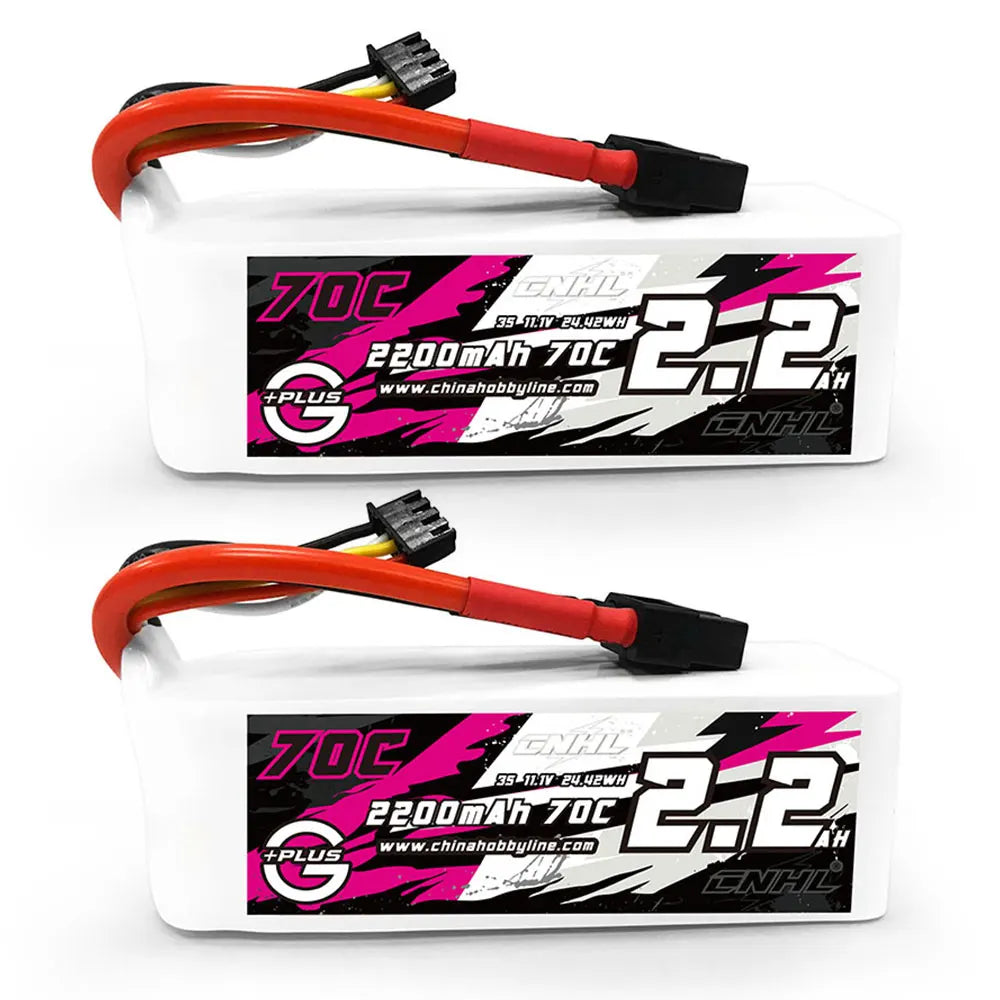

Model 3：2200mah 3S 11.1V 70C XT60-Plug
Stock Number：220703
Capacity ：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：70C Continual / 140C Burst
Charge Rate：5C Max

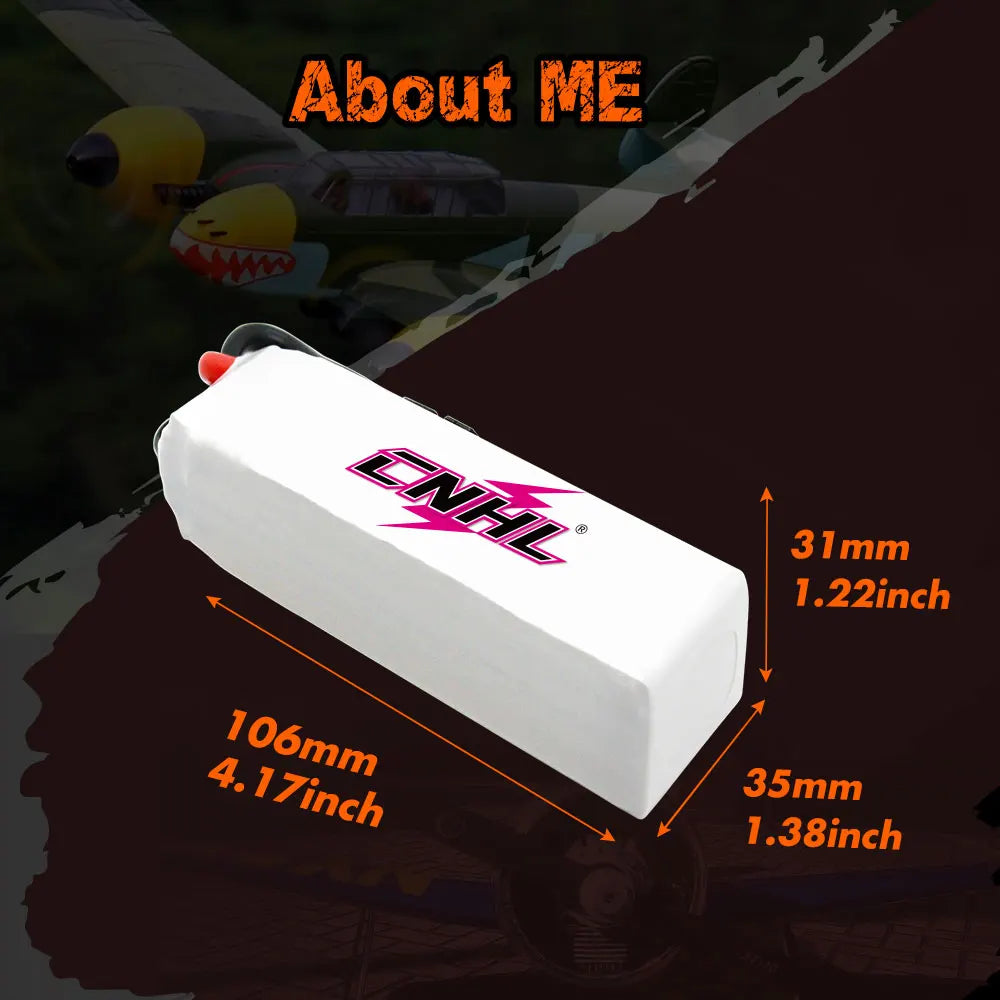

Size：31X35X106mm
Weight ：192g (Including wire and connector)
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A

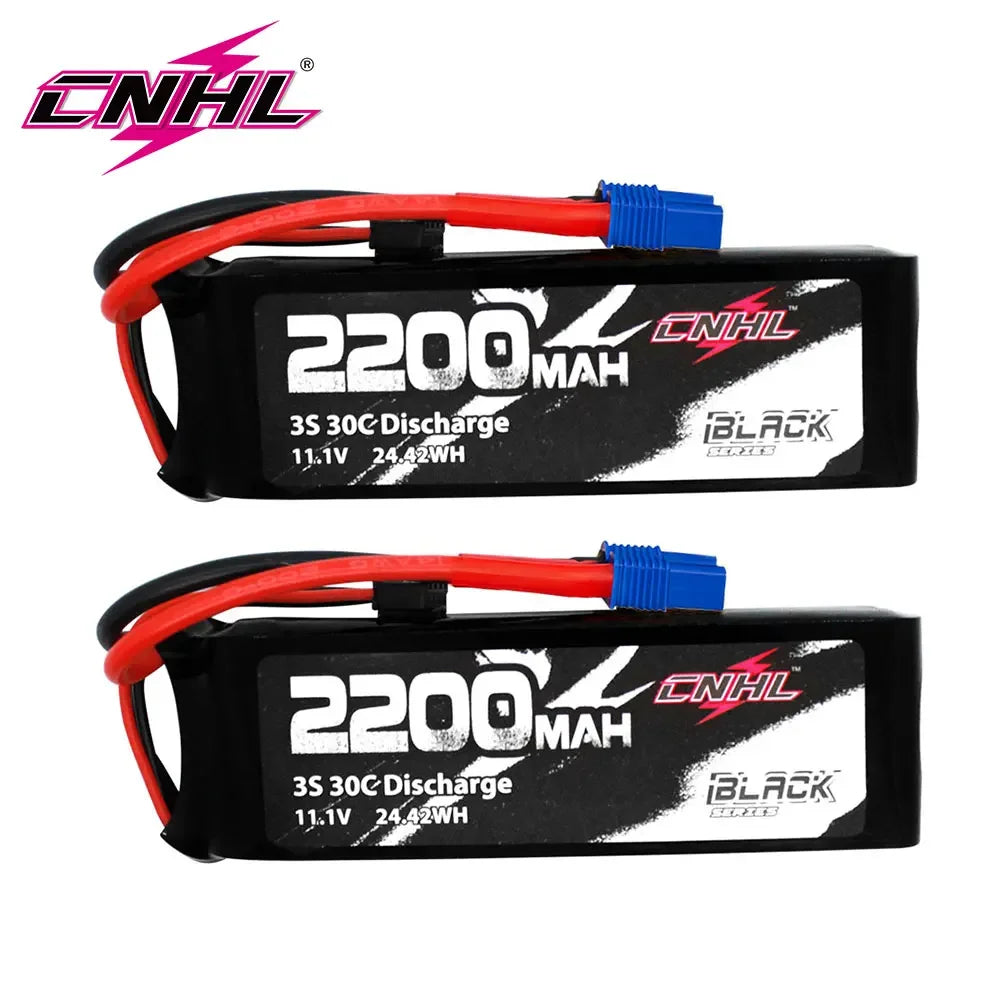

4. Stock Number：220303BKEC3
Capacity：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max
Size ：24*34*106mm
Weight180g
Output Connector：EC3
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

5.Stock Number：220303
Capacity：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max
Size ：26*36*108mm
Weight：179g
Output Connector：T/Dean Plug
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：14#

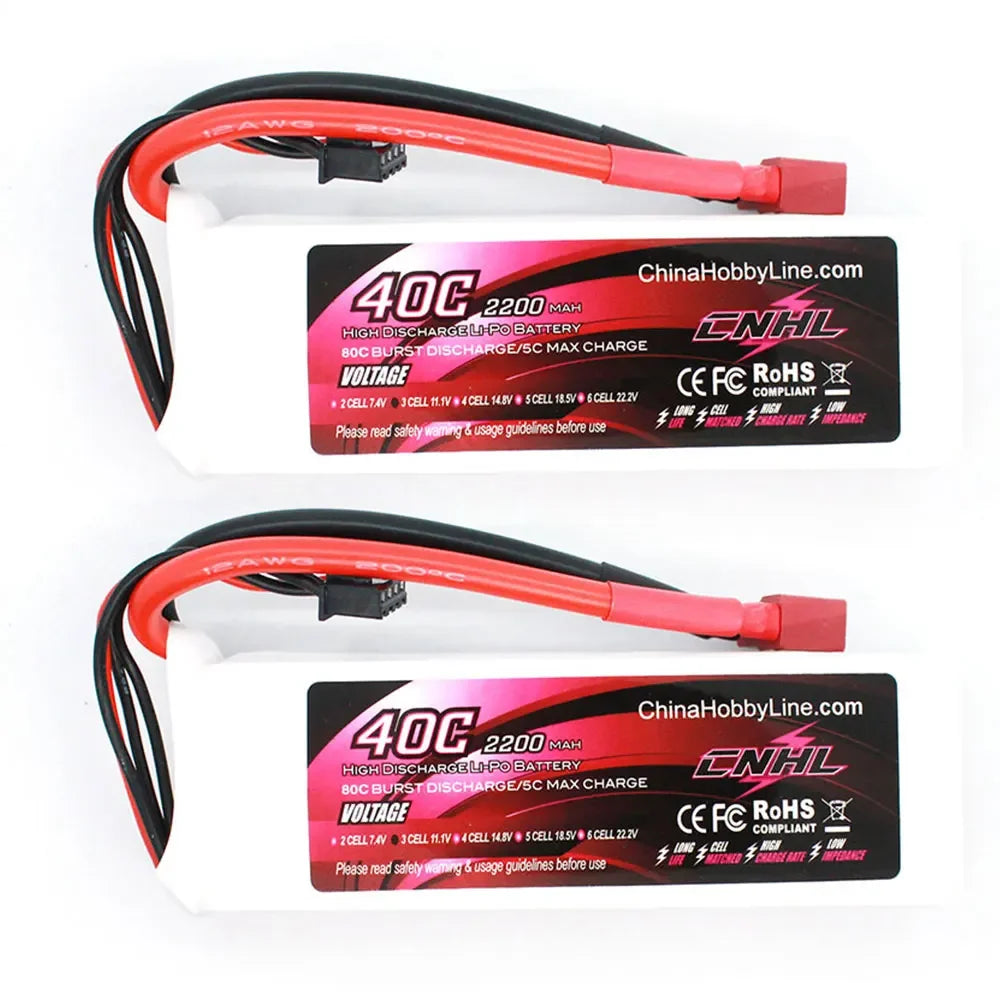

6. Stock Number：220403
Capacity：2200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：40C Continual / 80C Burst
Charge Rate：5C Max
Size：28X36X108mm
Weight：185g
Output Connector：T/Dean Plug
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：14#

Application Scenarios

CNHL 3S 2200mAh 30C 40C 70C lipo battery designed for RC Helicopter Airplane Quadcopter UAV Drone FPV
Special designed for 450 size helicopters, Glider, EPP, Skylark M4-FPV250, Mini Shredder 200, Vortex, Emax Nighthawk 250, 400mm X-Sled, etc.
Notice: For the RC battery, only if the voltage and the plug match, then it will fit.
Note: due to the difference between the measurement, the battery dimension and weight may have little error.

Notice

1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don't overcharge more than 4.2V and don't over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.
