Description
SPECIFICATIONS
1Model Number: SCV4-YQ-04R2G
2Model Number: SCV4-YQ-05R2G
Brand Name: NoEnName_Null
Certification: ce
Choice: yes
Current: 10A
Features: Manual
Item Type: SWITCHES
Material: Plastic
Model Number: SCV4
Origin: Mainland China
Switch Type: Toggle Switch
Warranty: 1year
semi_Choice: yes

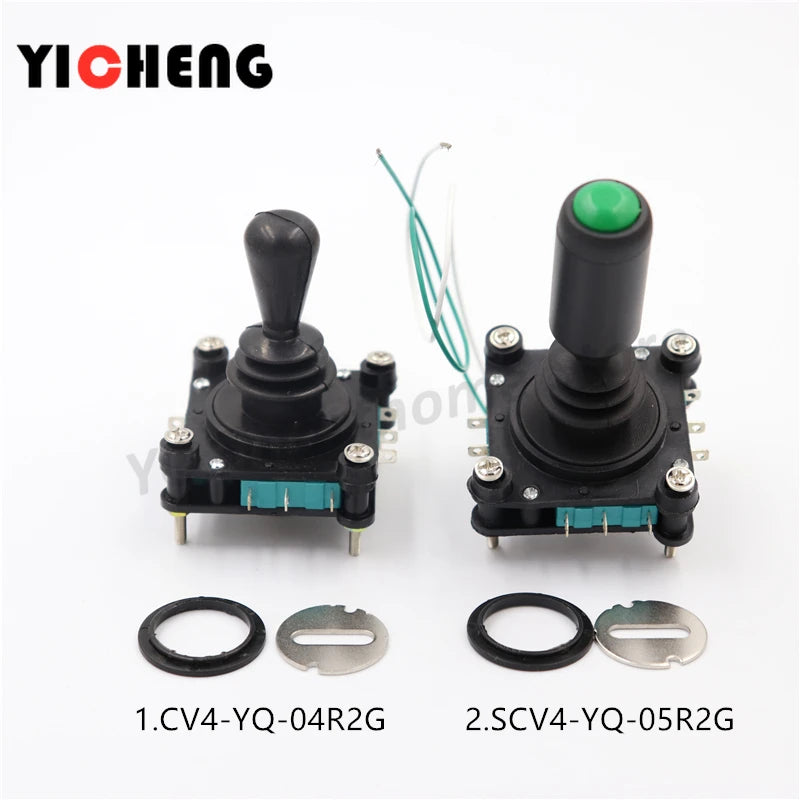

[model]: 1.SCV4-YQ-04R2G 2.SCV4-YQ-05R2G
[type]: Momentary
[direction]: upper, lower, left and right

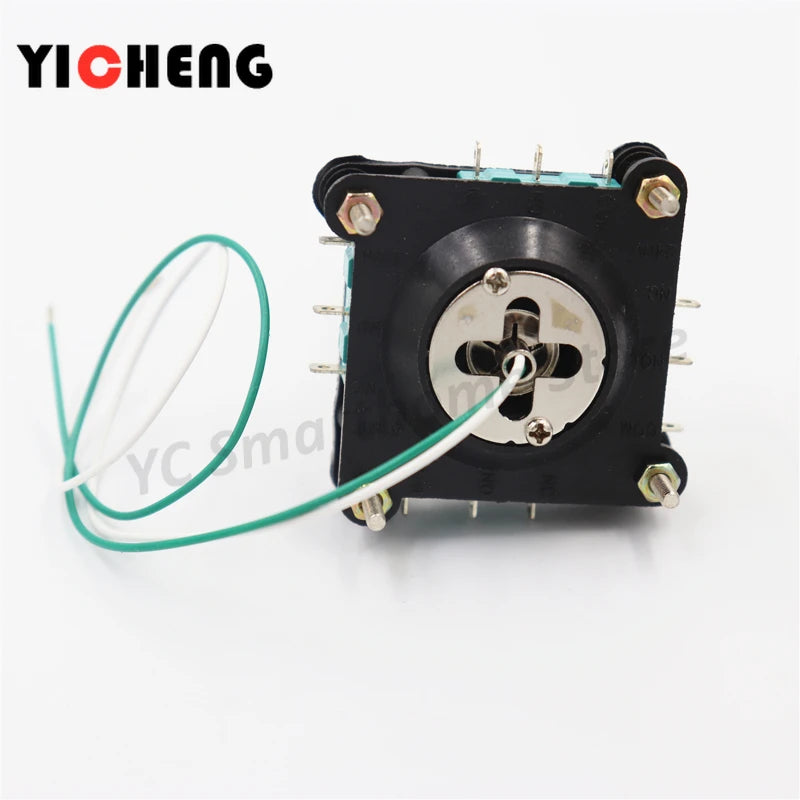

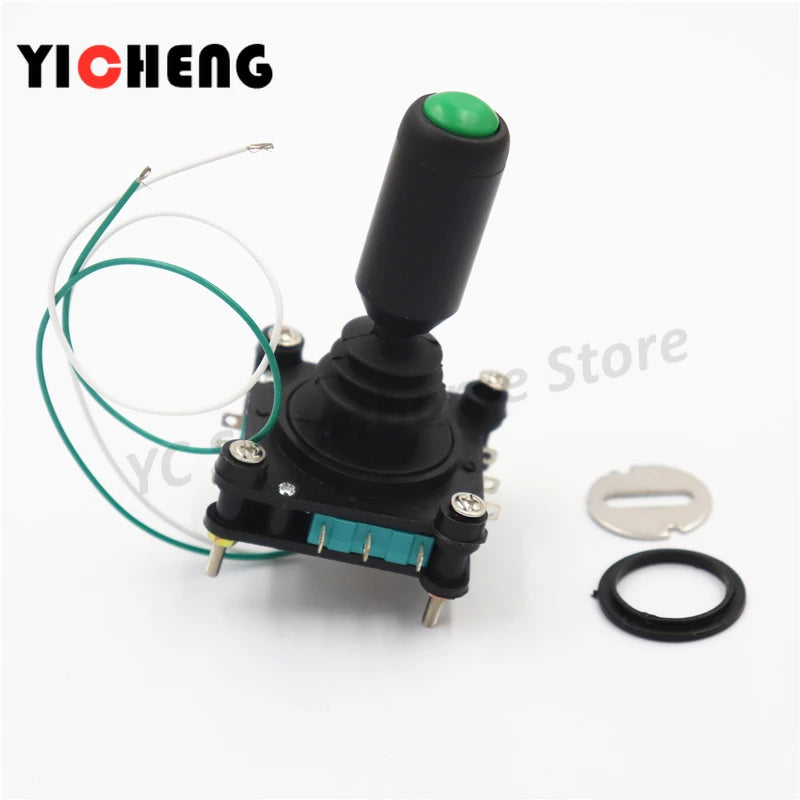

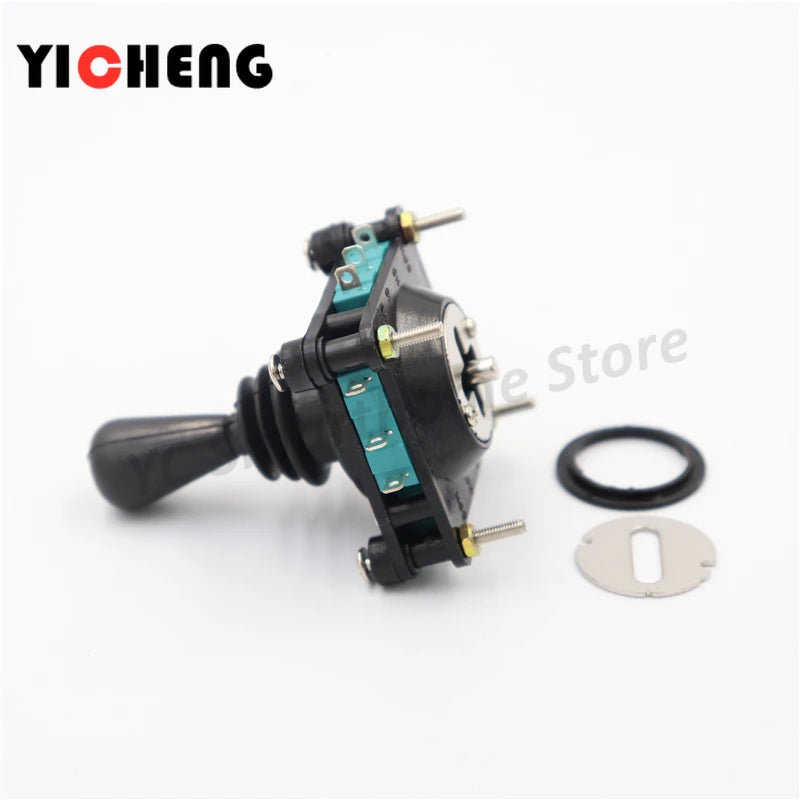

product manual:SCV4-YQ-05R2G four-way (two-way, universal) self-resetting handle with button cross rocker main switch with four micro-switches, each micro-switch is 1 normally open +1 normally closed, a public Terminal (COM), a normally open end (NO), a normally closed end (NC); each of the following micro-switches is controlled in one direction, and is pulled to a direction to release the arm and automatically bounce back to the center position! Press the white line and the green line below the green button above to turn it on, the white line and the green line below the green button are released. The green button is controlled separately.
product manual:SCV4-YQ-05R2G four-way (two-way, universal) self-resetting handle with button cross rocker main switch with four micro-switches, each micro-switch is 1 normally open +1 normally closed, a public Terminal (COM), a normally open end (NO), a normally closed end (NC); each of the following micro-switches is controlled in one direction, and is pulled to a direction to release the arm and automatically bounce back to the center position! Press the white line and the green line below the green button above to turn it on, the white line and the green line below the green button are released. The green button is controlled separately.
