SPECIFICATIONS
BMS: 48V 200A Smart bluetooth BMS
Battery Average Life: more than 6000 cycles
Battery Cell Composition: LiFePO4
Battery Charge Time: According to the charging current, the maximum current charger should
Battery Specific: It is resistant to overcharge/overdischarge, not prone to thermal runa
Bluetooth Battery Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French
Brand Name: KEPWORTH
Capacity: 100ah
Certificate: CE,ROHS,MSDS,UN38.3
End Voltage: 40V
Hign-concerned Chemical: None
Item Height: 220
Item Length: 640
Item Type: Car Batteries
Item Weight: 42.9
Item Width: 245
Max Protection Voltage: 58.4V
Maximum Charging Current: 0.5C
Origin: Mainland China
Use For: Tricycle Motorcycle Scooter RV Campers Golf Cart Solar Storage
Voltage: 48V
Working Temperature: -20 ~ 60 ℃
About this item:
Capacity: 100Ah Bluetooth
Battery Material:Lithium Iron Phosphate(LiFePO4) Battery
Nominal voltage: 48V
Max Protection Voltage: 58.4V
End Voltage: 40V
Instantaneous discharge current:≥2C
Continuous discharge current:≥1C
Size: 640*230*220mm
Weight: 42.9KG
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
48V 100Ah BMS: 200A Bluetooth BMS
Cycles Life: 2000 Cycles-100% 6000 Cycles-70%
Max Charge Current: 0.5C
Working temperature : -20 ~ 60 ℃
Charge temperature: -5 ~ 45℃
Warranty: 2 yesrs
Parcels includes:

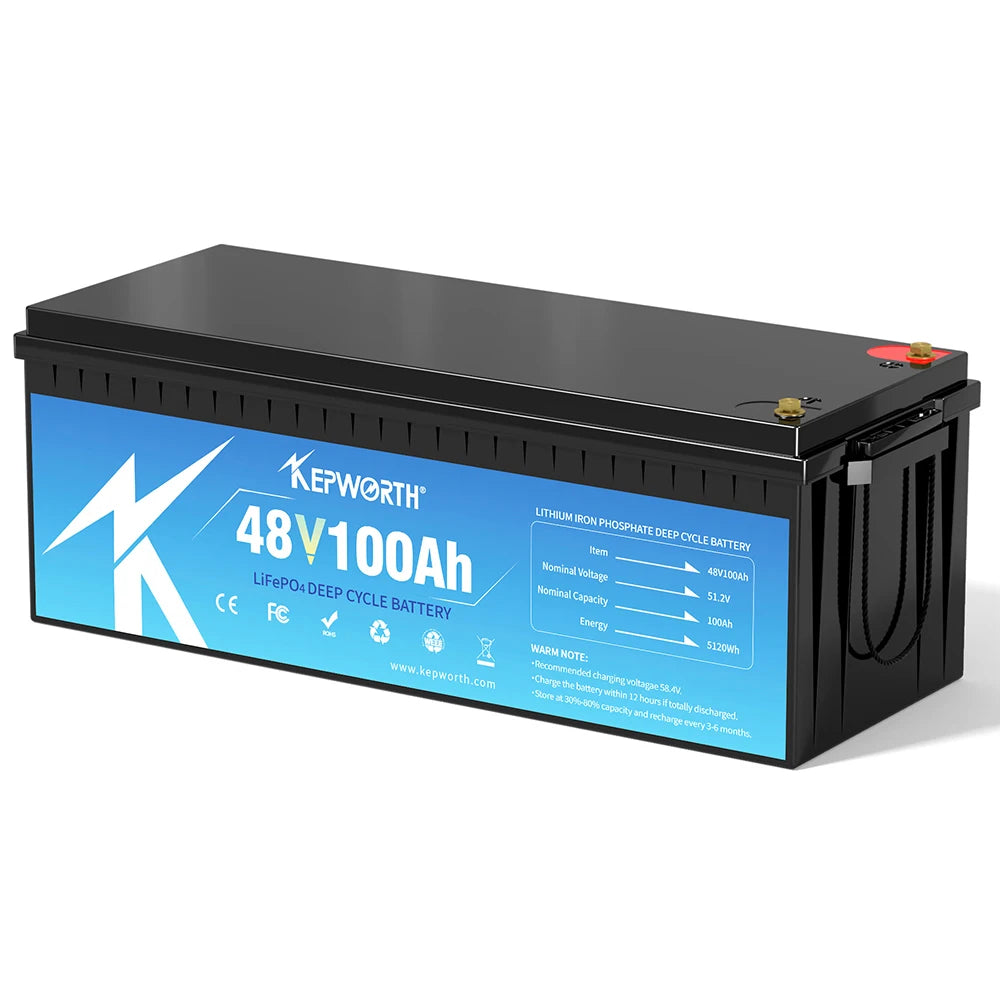

1pcs KEPWORTH 48V 100Ah bluetooth LiFePo4 Energy Storage Battery pack
1 Product Instruction Manual
Note: About series/parallel connection Series: 48V 100Ah LiFePO4 battery does not support series connection
Parallel connection: Unlimited number of parallel connections
Used For:
Solar Panel Power Bank System, Solar VRLA 24V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Car/ Motorcycle/ ATV Engine Starts)
Advantages:
It has excellent safety performance and high efficiency and stability working performance than traditional Lead acid battery.
Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).

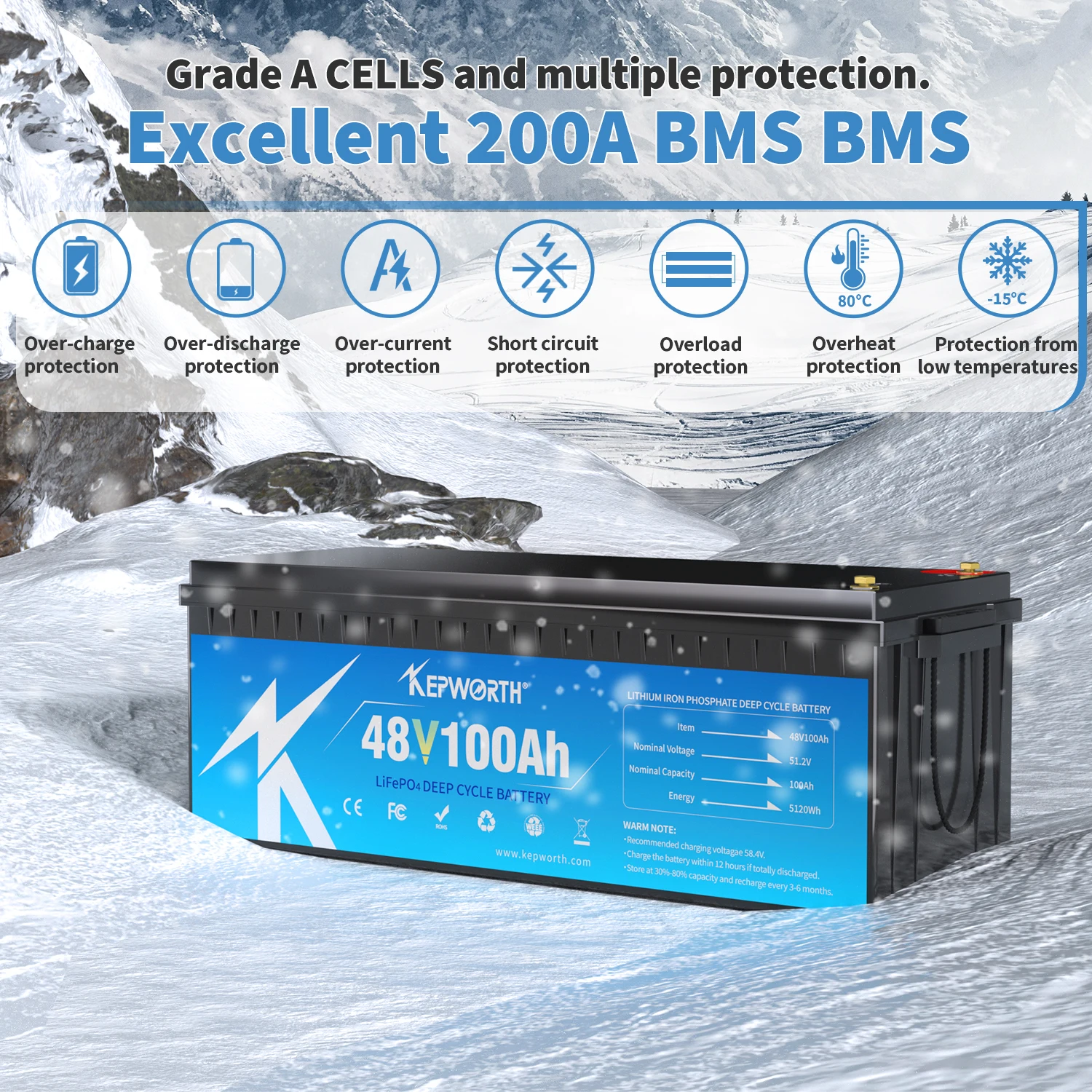

Built-in BMS: BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.
Lithium ion Technology: Unlike Lead Acid batteries, Battle Born's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.
Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.
About 48V 100A Bluetooth BMS:
Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French.

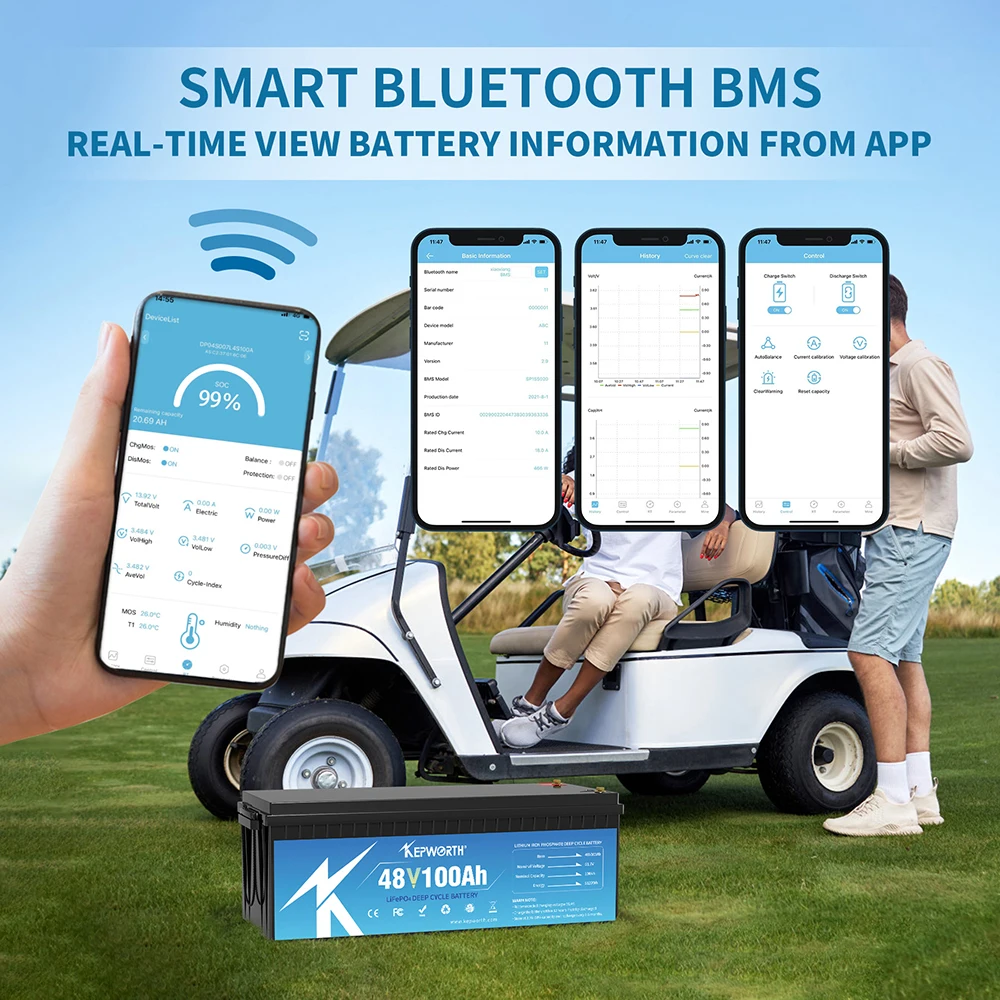

Overview:The Bluetooth communication mobile phone APP system mainly connects the special Bluetooth device through the Bluetooth function of the mobile phone, and the Bluetooth device communicates with the BMS, so that the user can detect the BMS information directly through the mobile phone and carry out the functions of reading, managing, querying and managing, thusreplacing the special BMS equipment and software.
Bluetooth communication mobile phone APP system includes real-time data reading, protection parameters, core characteristics, acquisition board settings, temperature protection, system settings and query functions.
The main functions of the system are:
1) Parameter reading: alarm fault information, number of temperature, number of battery strings.
2) protection parameters: monomer over voltage protection, monomer under voltage protection, overall over voltage protection, overall under voltage protection, differential pressure protection, charging over current protection, discharge over current protection.
3) Core characteristics: battery type, rated capacity, monomer reference voltage, dormant waiting time, SOC setting, balanced opening voltage, balanced opening pressure difference.
4) Acquisition board setting: number of acquisition board, number of acquisition board 1 unit, number of acquisition board 2 unit, number of acquisition board 3 unit, number of acquisition board 1 unit temperature, number of acquisition board 2 unit temperature, number of acquisition board 3 unit temperature.
5) Temperature protection: charging high temperature protection, charging low temperature protection, discharge high temperature protection, discharge low temperature protection, temperature difference protection, power tube temperature protection.
6) System settings: charging switch, discharge switch, restart system, restore factory settings, current to zero, reset password.
System Characteristics:
1) Alarm prompt: alarm fault view, alarm prompt automatic elimination after fault release.
2) Bluetooth: When the user opens the software, if the userdoes not turn on the Bluetooth function, then automatically prompt to turn on the phone Bluetooth, unplug or sleep automatically disconnect Bluetooth connection.
