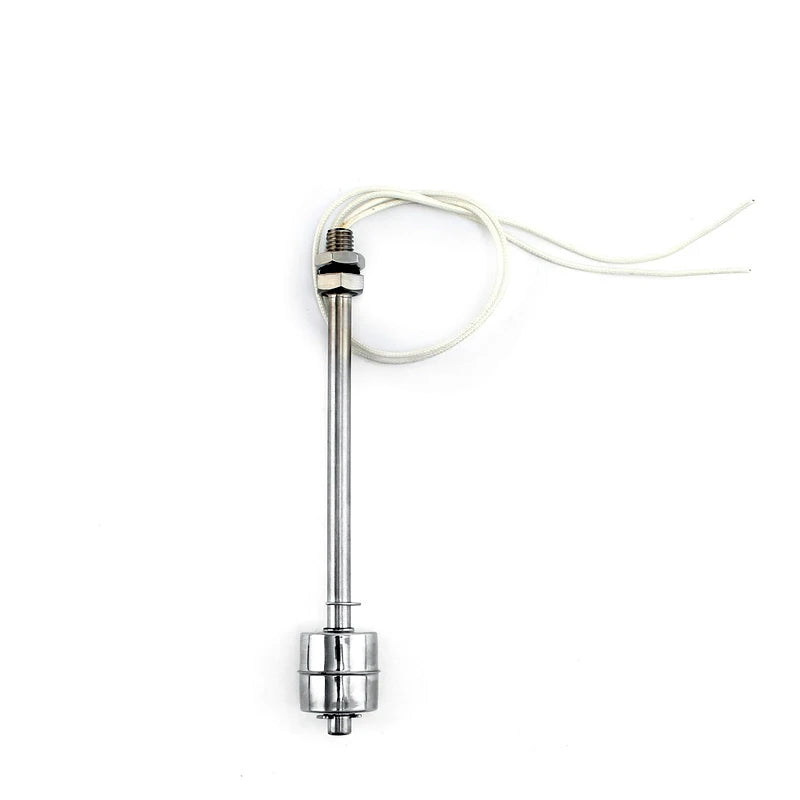

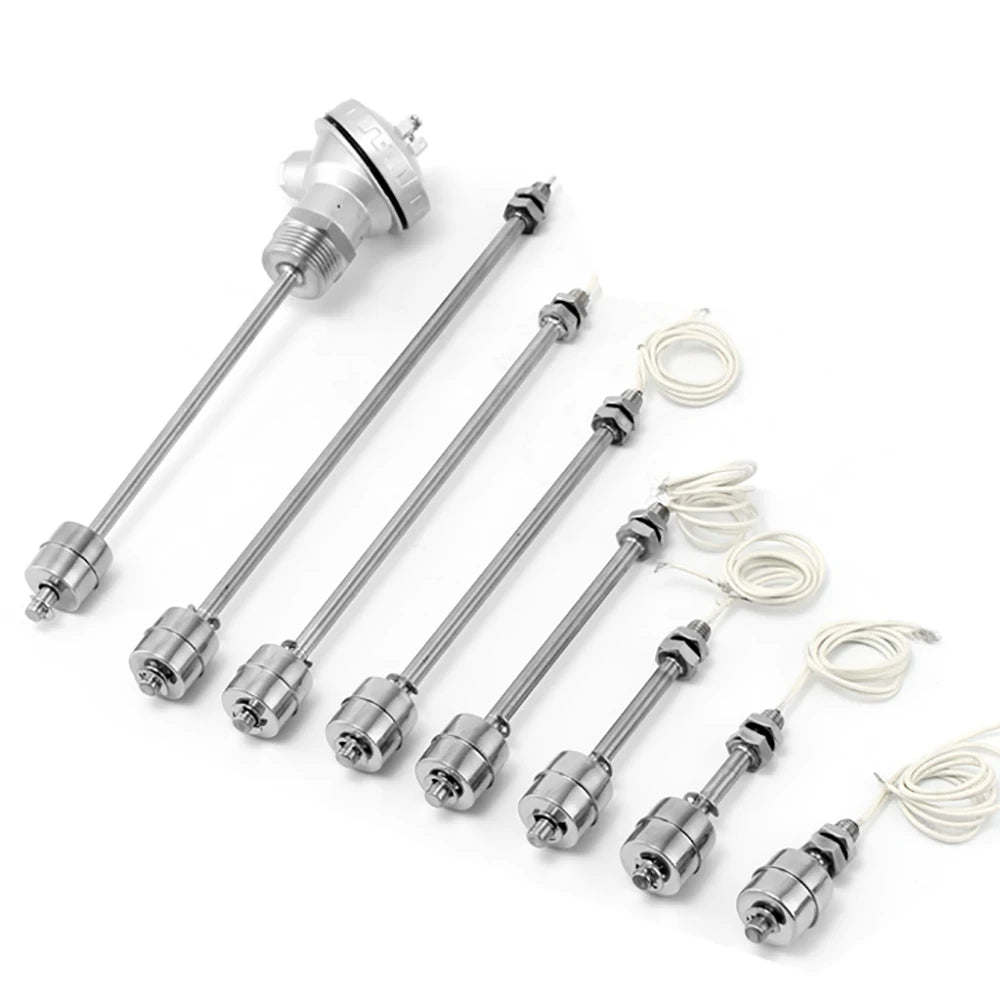

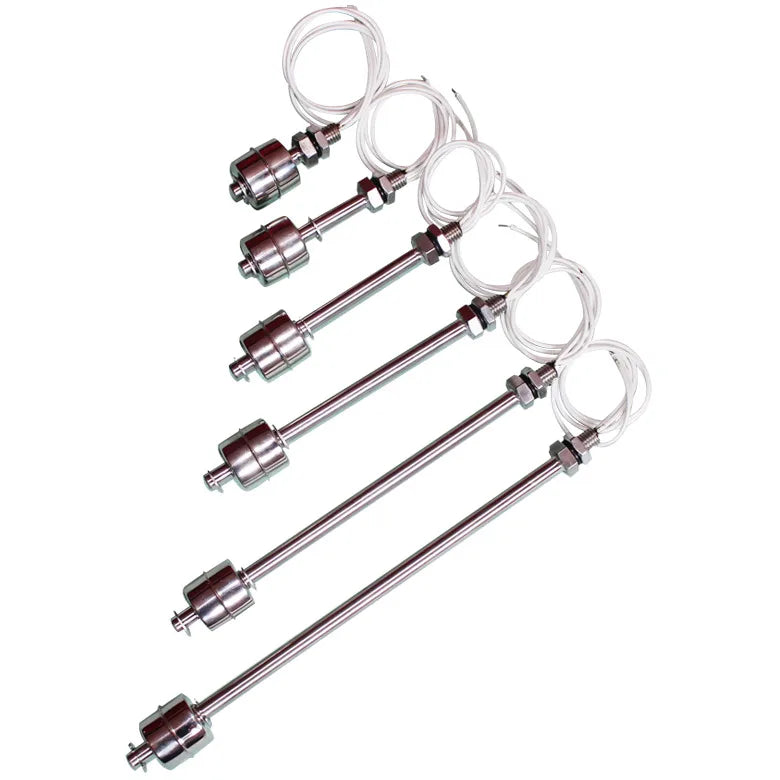

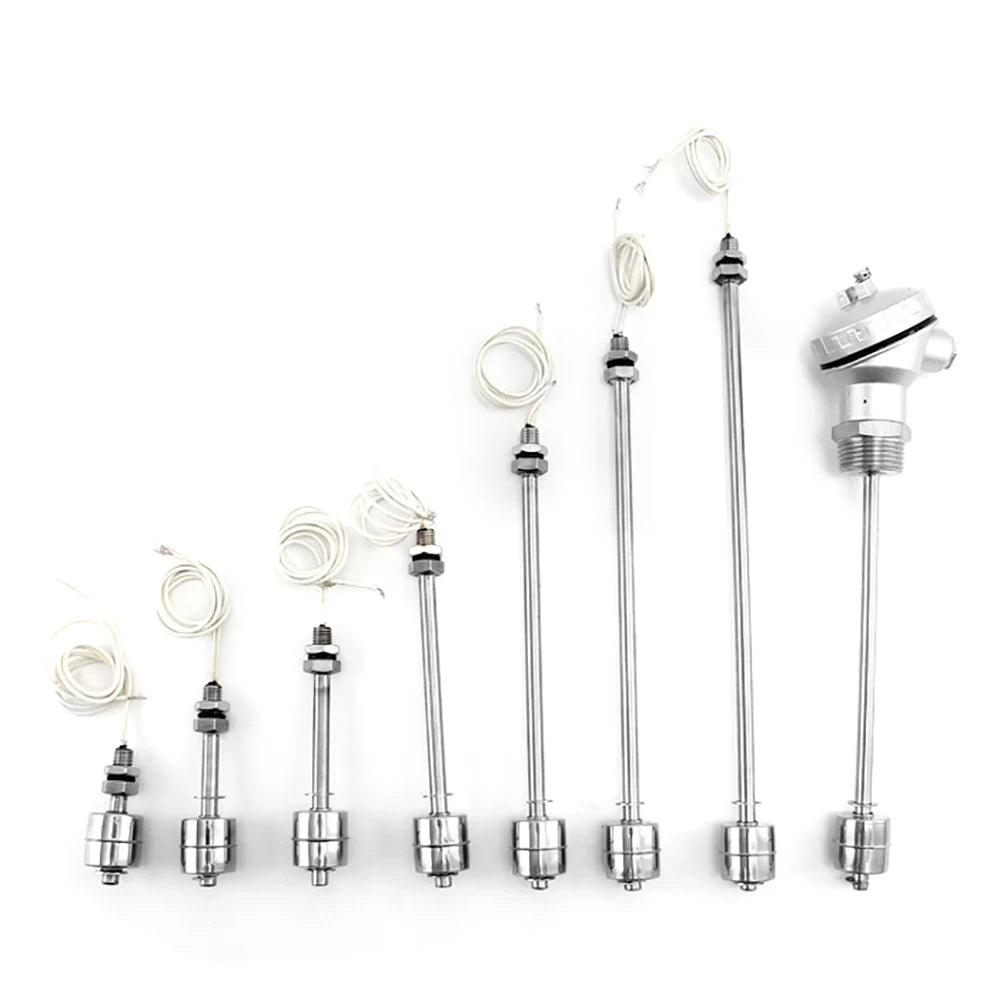

High Temperature Stainless Steel Floating Ball Switch Liquid Position Switch Water Level Switch Water Level Controller

Ahorrar 20%
East Supplier PlatformSKU: 32821729336-800MM-220V

Color: 800MM
Precio:
$101 $126.25

Impuestos incluidos

Stock:
Agotado

Descripción

SPECIFICATIONS

Brand Name: makerele

Certification: CCC,ce,ROHS

Current: 0.5A

Decoration and construction content: Hydropower project

Features: float switch

Is Smart Device: No

Item Type: SWITCHES

Material: STAINLESS STEEL

Model Number: MK-SFS

Origin: Mainland China

Switch Type: Sensor Switch

Warranty: 3


Product parameters

Product Name

Stainless float ball switch

Contacts

NO+NC

Max Contact Rating

50W

Max Switch Voltage

220VAC/200VDC

Max Switch Current

1.5A



Max Contact Resistance

100m ohm

Temperature Rating

-10 - +125C

Float Ball Material

Stainless Steel

Float Body Material

Stainless Steel

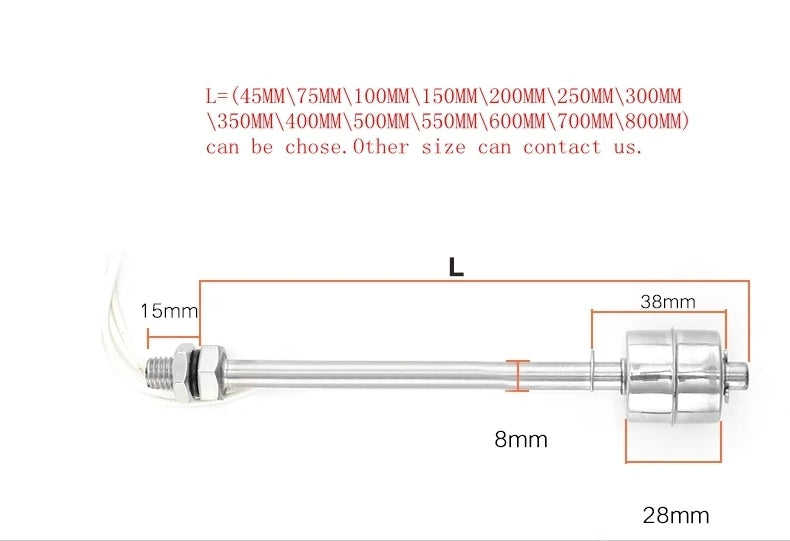

Screw Thread Diameter

9.5mm/0.27"

Color

Silver Tone



The customer often ask questions


1: float point can not move?
Answer: Can not,Float point is fixed, has spring up and down limit. Circlip mobile also was not used, the dry reed pipe inside contact you can't move.


2: float switch can directly control the pump or solenoid valve, alarm it?
Answer: Can not,Because the floating ball switch inside the dry reed contact current small, large control load will burn. Electromagnetic valve control alarm to small relay to control the pump to add miniature relay







 and AC contactor (according to the power of the pump with the corresponding AC contactor) .
















3:Can NO or NC change?

yes ,can be change.
