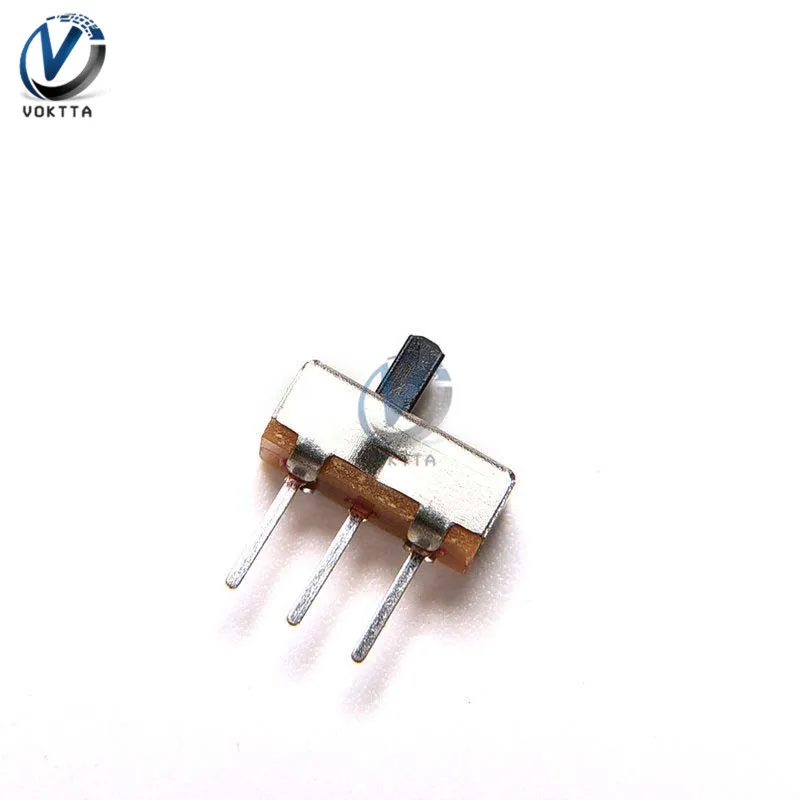

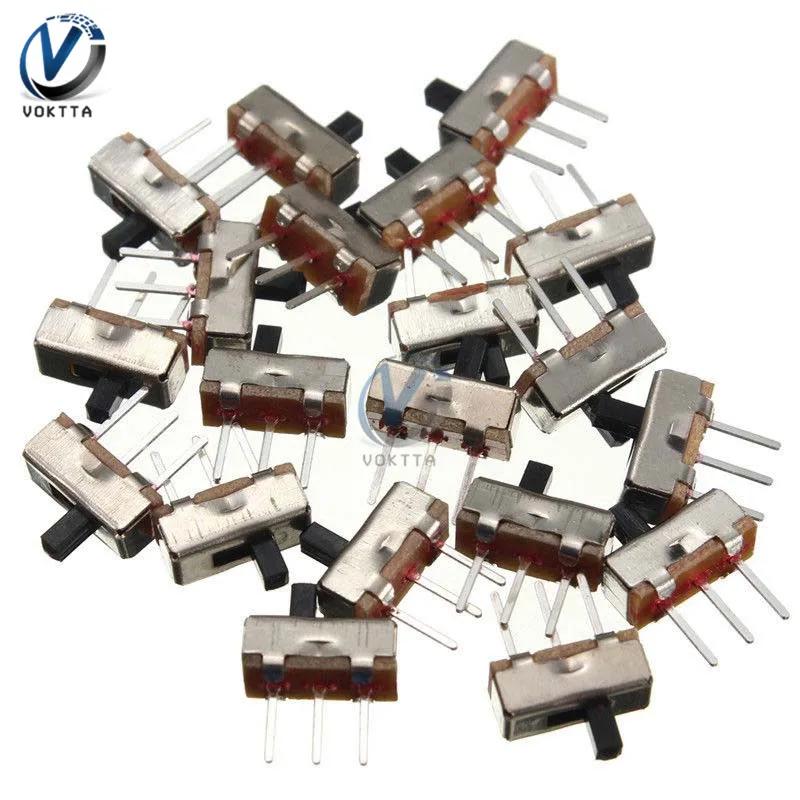

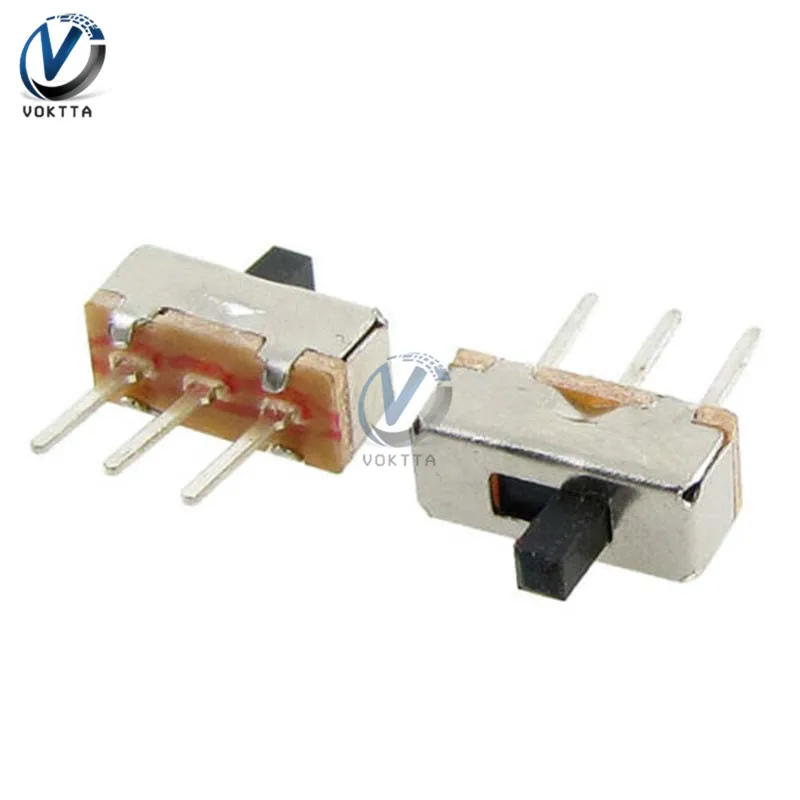

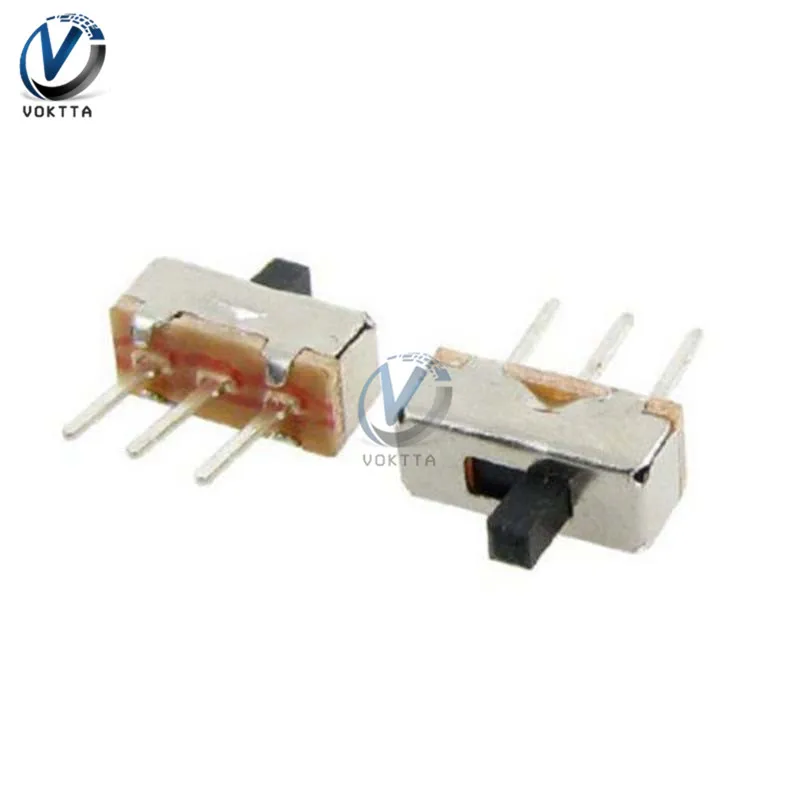

50Pcs Mini SS12D00G3 Switch Interruptor On-off 2 Position 3 Pin Toggle Switch Button Universal Slide for SMD PCB DPDT

Sparen Sie 20%
East Supplier PlatformArtikelnummer:4000091720006-Default Title

Preis:
$0.70 $0.88

Steuern inklusive

Aktie:
Auf Lager ( 2647 Einheiten), versandbereit

Beschreibung

SPECIFICATIONS

Brand Name: Voktta

Origin: Mainland China

Current: -

Features: SS12D00G3 Switch

Material: Alloy

Item Type: SWITCHES

Warranty: -

Switch Type: Toggle Switch

Certification: CCC

Model Number: SS12D00G3

50Pcs Mini SS12D00G3 Switch Interruptor On-off 2 Position 3 Pin Toggle Switch Button Universal Slide for SMD PCB DPDT

Features:
-Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 -Position, Sliding Knob Actuator.
-Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
-Also a great component for DIY.

Specifications:
Model:SS-12D00G3
Type:1 Pole 2 Throw
Terminal Quantity: 3 Pcs
Working Power :0.5A 50V DC
Contact Resistance: 30mΩ Max
Insulation Resistance:100mΩ Min at 500V DC
Withstand Voltage:AC 500V for 1 min
Terminal Length:3mm/ 0.12"
Pin Pitch:2.54mm / 1"
Main Body Size(not include Pins & Knob):8 x 4 x 3.8mm/ 0.31" x 0.16" x 0.15"(L*W*H)
Switch Total Size: 8 x 4 x 10mm/ 0.31" x 0.16" x 0.39"(L*W*H)
Knob Size: 1.5 x 1.5 x 3mm/ 0.06" x 0.06" x 0.12"(L*W*H)
Material(External):Plastic, Metal
Main Color: Silver Tone, Black
Weight:8g

Package Included:
50 x Slide Switch
